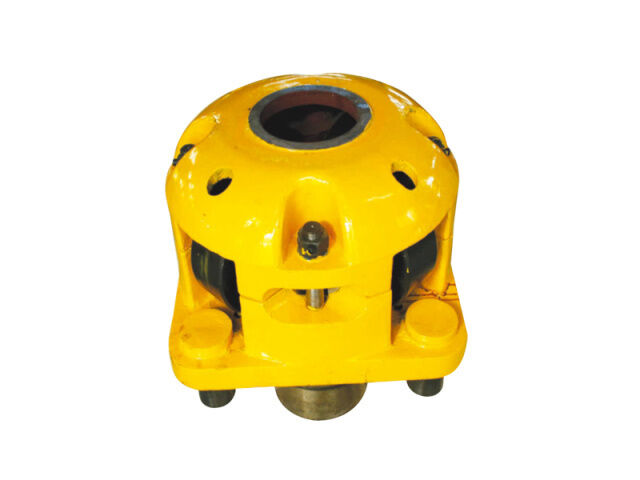

API 7K Kelly Bushing Forged Rotary Table Bushing Heavy Duty

API 7K Kelly Bushing

Forged Rotary Table Bushing

Rotary Table Bushing Heavy Duty

Place of Origin:

China

Brand Name:

RIG

Certification:

API 7K

Model Number:

HDS

Chat Now

Request A Quote

Product Details

Type:

Heavy Duty

Drive Mode:

Sifang

Square Drill Pipe:

76.2～152.4mm/3～6 In

Six Square Drill Pipe:

76.2～152.4mm/3～6 In

Type 2:

Roller Kelly Bushing

Standard:

API 7K

Highlight:

API 7K Kelly Bushing

Forged Rotary Table Bushing

Rotary Table Bushing Heavy Duty

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

woden carton

Delivery Time

in stock

Payment Terms

L/C, T/T

Wear Resistant Wellhead Tools API 6A Plug Valve Compact

Chat Now

API 16A Wellhead Tools Fluid Control Drilling Spool High Pressure

Chat Now

Single Arm / Double Arm Wellhead Tools API 8C Elevator Links

Chat Now

API 8C Drill Pipe Elevator Open Drilling Rig Elevator High Strength

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

API 7K Standard Roller Kelly Bushing Forged Drilling Equipment for Well Drilling

HDS Kelly Roller Bushing

This core is an essential tool for oil drilling. It matches the square tile of the rotary table and drives the square drill rod. The product reduces the friction with the square drill rod through the rotation of four rollers and prolongs its life. For square and hexagonal square drill rods of different specifications, they can be matched with them by replacing rollers and connected with various rotary tables. There are two forms of four-way rotation and pin rotation. Designed and manufactured according to API Spec 7K "Drilling Equipment Specification".

Technical specifications for kelly roller core filling

Model		HDS	27-HDP	20-HDP	MDS	20-MDP	17-MDP	LDS
Type		Heavy duty			Medium			Lightweight
Maximum torque	N.m	32365			22555			13729
	ft.lbf	23871			16636			10126
Drive mode		Sifang	Pin		Sifang	pin		Sifang
Square drill pipe	mm	76.2～152.4			63.5～133.35			63.5～133.35
	in	3～6			21/2～51/4			21/2～51/4
Six square drill pipe	mm	76.2～152.4			76.2～107.95			76.2～107.95
	in	3～6			3～41/4			3～41/4
Appearance size	mm	630×630×740	630×630×780		493×493×696	510×510×720	458×458×700	508×508×700
	in	24.8×24.8×29.1	24.8×24.8×30.7		19.4×19.4×27.4	20×20×28.3	18×18×27.5	20×20×27.5
Quality	Kg	700	730	670	420	460	340	400
	lb	1540	1610	1470	924	1012	750	808
