Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 6A
Model Number:
Slab Gate Valve

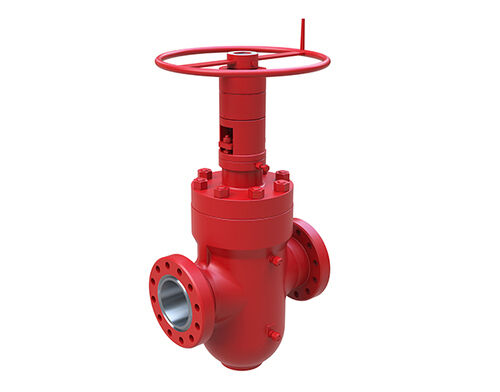

High Quality API 6A Flanged Slab Gate Valve for Wellhead and Oil Drilling
The Slab Gate Valves features a non-rising stem with a slab gate,Full-Bore Thru-Conduit Design, Floating Slab Gate and Seats,floating seat ring body bushing design to provide safe dependable service. No special tools are needed to change gate and seat assembly. The stem pin protects the stem and internal parts from failure by shearing if the handwheel is over torque. One-piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the up stream pressure drops. A wide range of body and trim materials to meet various operating conditions.
Slab gate valve is the main control component of wellhead and manifold; can also be used separately as needed. According to its structure can be divided into: manual rising stem slab gate valve, manual non-rising stem slab gate valve, hydraulic slab gate valve.
| Nominal Bore Diameter | 1-13/16"～9" |
| Working Pressure | 2000psi～20000psi |
| Temperature Class | KU(-60℃～121℃) |
| Material Class | AA～HH |
| Product Specification Level | PSL1～PSL3G |
| Performance Requirement | PR1～PR2F |
