Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C
Model Number:
ELEVATOR

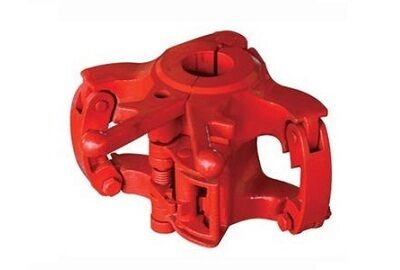

API 8C Oilfield Elevator Drill Pipe Casing Tubing Elevator for Well Drilling
Product Description
The design and fabrication conform to API Spec 8A, API Spec 8C, SY/T5035 and other relevant technical specifications, with a national fabrication license.
It’s made of high quality alloy steel created by a forging process.
Finite-element analysis is adopted for strength checking and electrical measurement for stress testing. There are two kinds of elevator links, including the single arm type and the double arm type.
More effective sand blasting process is adopted to intensify the surface of the links
Technical Specification:
| Specification and model | Rated load (KN/US ton) |
Suitable DP size |
Elevator upper/lower bore diameter (mm) |
Net weight | |
| in | mm | kg | |||
| CD27/8EU-150 | 1335/150 | 27/8EU | 73.0 | 86/76 | 73 |
| CD31/2EU-150 | 31/2EU | 88.9 | 103/92 | 76 | |
| CD31/2EU-250 | 2225/250 | 31/2EU | 88.9 | 103/92 | 96 |
| CD4 IU-150 | 1335/150 | 4 IU | 101.6 | 110/105 | 85 |
|
(CD4EU-150)
CD41/2IU-150
(CD41/2IEU-150)
|
4EU
41/2IU
41/2IEU
|
101.6 114.3 114.3 |
122/118 | 95 | |
|
(CD4EU-250)
CD41/2IU-250
(CD41/2IEU-250)
|
2225/250 |
4EU
41/2IU
41/2IEU
|
101.6 114.3 114.3 |
122/118 | 125 |
| CD41/2EU-150 | 1335/150 | 41/2EU | 114.3 | 131/118 | 92 |
| (CD41/2EU-250) | 2225/250 | 41/2EU | 114.3 | (131/118) | 130 |
| CD5 IEU-250 | 5 IEU | 127 | 135/131 | 130 | |
