Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
Plunger Pump

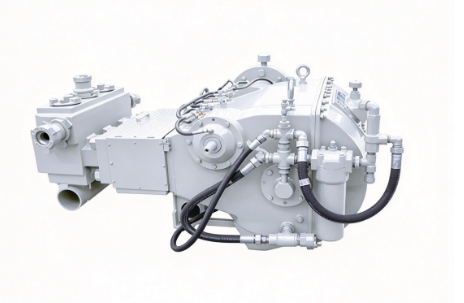

API Plunger Pump High Pressure Triplex Plunger Pump for Oilfield Drilling
Description:
Consisting of one power end assembly and one fluid end assembly, it is available in multiple specifications with different power ratings.
It can be matched with various equipment, covering a power range from 600 HP to 2500 HP. We supply triplex and quintuplex plunger pumps of multiple models including TPA400, TPH400, TPD600, QPA1000, QPH2400 and QPA2500. Suitable for well service operations under various working conditions, such as acidizing, fracturing, well killing, etc.
Parameters
| Model | Max Input Power (bhp) | Max Connecting Rod Load (lbs) | Stroke (") | Gear Ratio |
|---|---|---|---|---|
| TPA400 | 400 | 120000 | 5 | 6.4: 1 |
| TPH400 | 600 | 176000 | 8 | 8.6: 1 |
| TPD600 | 600 | 100000 | 6 | 4.6: 1 |
| QPA1000 | 1000 | 100000 | 6 | 4.6: 1 |
| TPA2250 | 2250 | 225000 | 8 | 8.6: 1 |
| QPA2500 | 2500 | 193000 | 8 | 6.5: 1 |
