API 16A Wellhead Tools Fluid Control Drilling Spool High Pressure

API 16A Wellhead Drilling Spool for Efficient Fluid Control Systems

Product Description

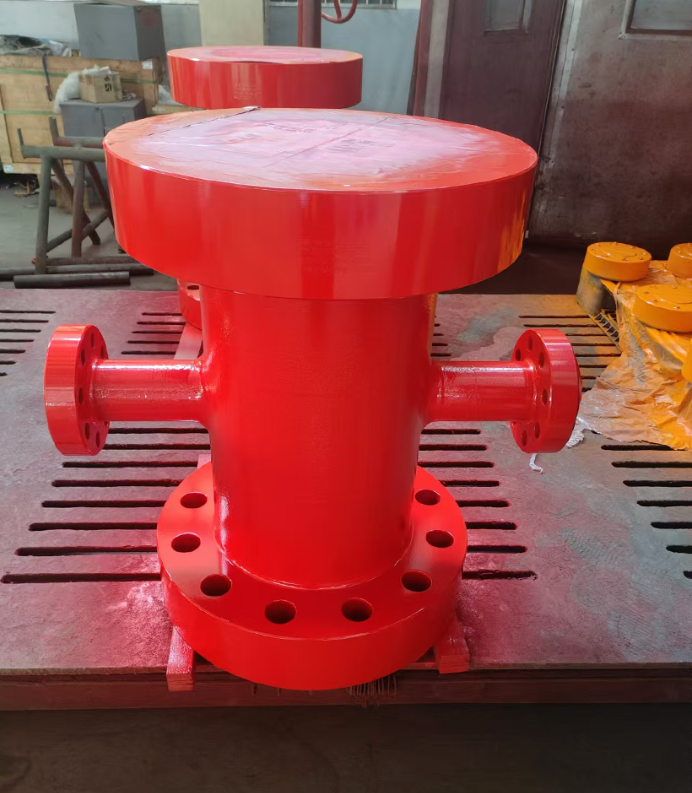

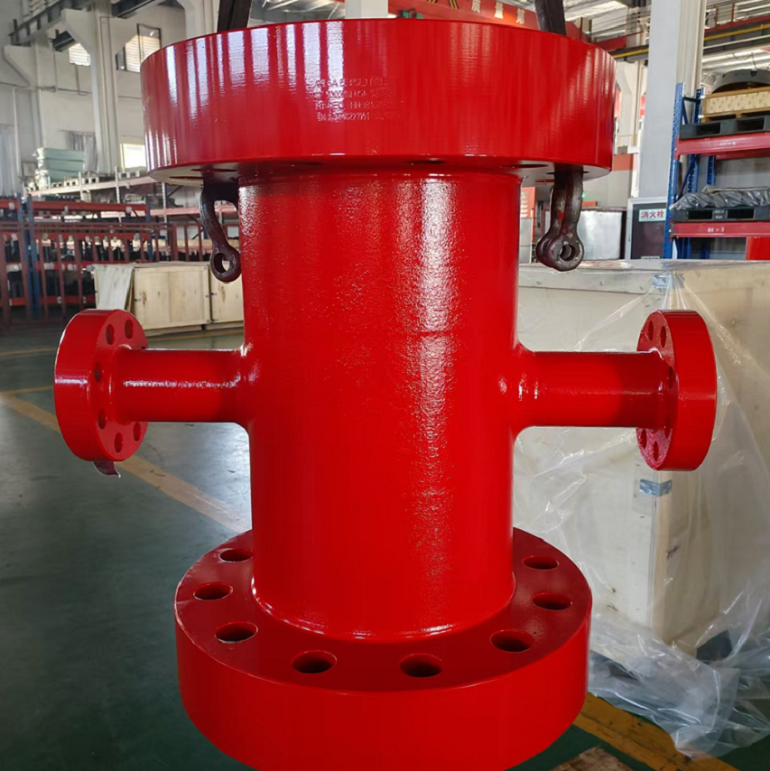

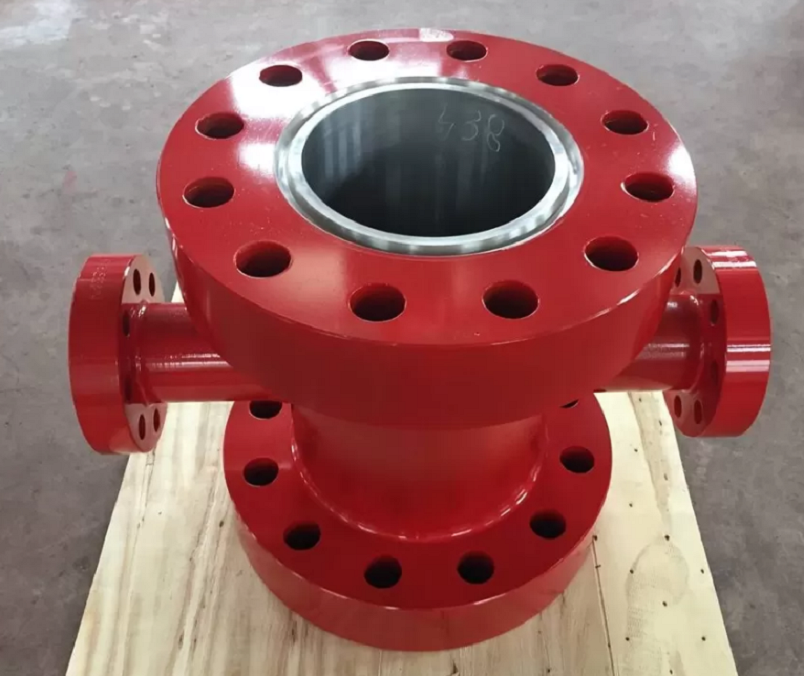

The drilling spool is used to connect the blowout preventer assembly, casing head, tubing head, choke and kill manifold, and other related components.
This cross is made of high quality low carbon alloy steel, which is overheated, and is suitable for high pressure oil and gas wells with wellhead pressure less than 35MPa.

Before delivery, it is inspected according to SY / t5053.1-2000 BOP and control device and BOP to ensure the safety of users in the working range. It is suitable for high-pressure oil and gas wells in the drilling process. The side port of the four-way pipe is connected with the corresponding valve and pipeline for blowout and throttling operations. At the same time, it also plays the role of connecting the blowout preventer and the wellhead. Installation and use are connected with BOP stack and casing head.

The steel ring groove and other parts shall be cleaned before installation. When tightening the connecting bolts between the cross and BOP, the force should be even.

Basic parameters

Nominal diameter: 7 1 / 16 "~ 30"

Working pressure: 2000psi ~ 5000PSI

Temperature: – 75 ° f ~ + 250 ° f (– 60 ° C ~ + 121 ° C

Main materials: AA, BB, CC, DD, EE, FF, HH

Specification level: psl1-3

Performance level: PR1
