Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
2800

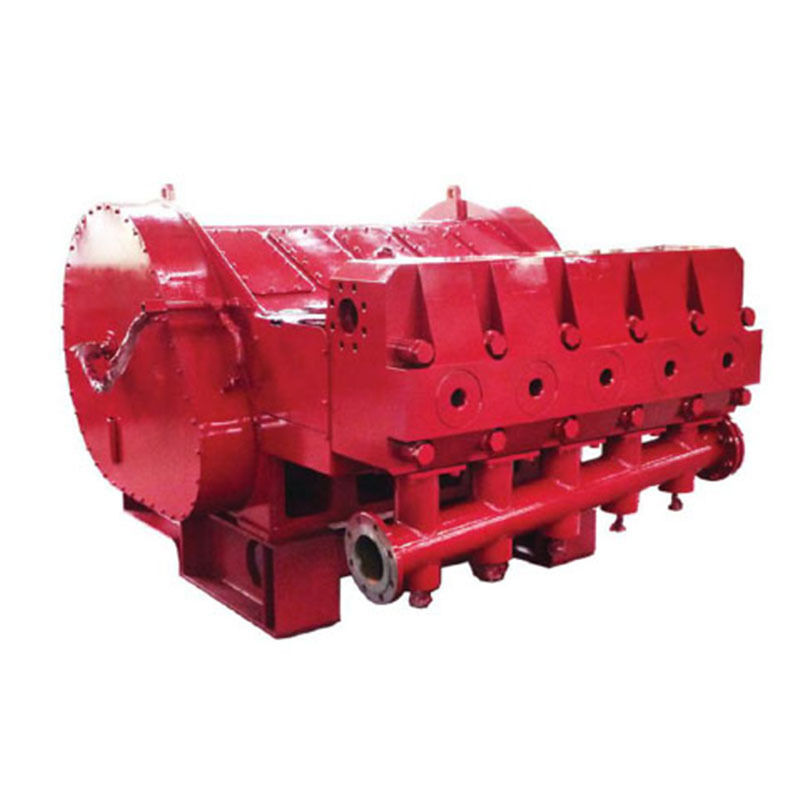

High-Pressure API 2800 Quintuplex Plunger Pump for Oil Drilling Rig
2800 Quintuplex large power plunger pump applicable for Fracturing, Cementing, Sand proof, acidizing etc. The maximum pressure is up to 140MPa. This is a large power quintuplex plunger pump on the market. The modern design, penetrating type connecting bolts make the connection more reliable; removable packing box make the maintenance more convenient.
Specifications
| Power braking(Max) | 2,800HP (2,088KW) |
| Connecting rod Load(Max) | 229,305 lbf (1,020KN) |
| Stroke | 8" (203.2mm) |
| Driving Model | Double‑cylinder helical gear transmission |
| Speed ratio | 6.333:1 |
| L×W×H | 91.3891.4247.44 in. (2,3212,3221,205mm) |
| Weight | 20,900 lb (9,500Kg) |
Fluid end
| Model | Specification | Weight | L×W×H (mm) |
| 2800 | 3.75",4" | 2480kg | 1600*519*609 |
