Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
200T

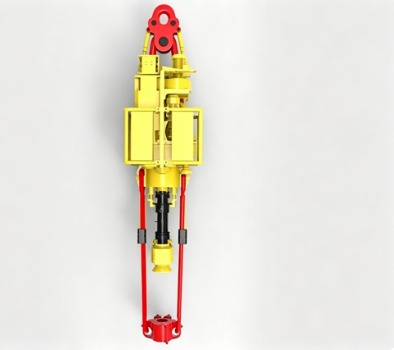

200T Variable Frequency Drive Top Drive for Land Drilling Rigs
Specifications:
| 1 | Nominal Drilling Depth Range | 2000 m |
| 2 | Drive Mode | Direct‑driven by AC variable‑frequency motor |
| 3 | Rated Load (Elevator, Main Shaft) | 1800 KN |
| 4 | Rated Continuous Output Torque | 30 KN·m |
| 5 | Maximum Make‑and‑Break Torque | 45 KN·m |
| 6 | Brake Braking Torque | 30 KN·m |
| 7 | Main Shaft Rotation Speed (Stepless Adjustable) | 0～180 r/min |
| 8 | Back Tong Drill Pipe Clamping Range | 2 7/8"～4 1/2" |
| 9 | Hydraulic System Working Pressure | 0～16 MPa |
| 10 | Rated Pressure of Mud Circulation Passage | 35 MPa |
| 11 | Mud Passage Bore Diameter | 60 mm |
| 12 | IBOP Rated Pressure | 70 MPa |
| 13 | Protector Connection Type | NC38～NC50 |
| 14 | Power Supply for Electric Control House | 600 VAC / 50Hz |
| 15 | Working Voltage of Explosion‑proof Solenoid Valve | 24 VDC |
| 16 | Overall Dimension of Top Drive | 4400 mm×1220 mm×1100 mm |
| 17 | Working Height | 4.8 m |
| 18 | Main Body Weight | 6.5 T |
| 19 | Applicable Ambient Temperature | -45℃～55℃ |
