High Pressure Drilling Hose

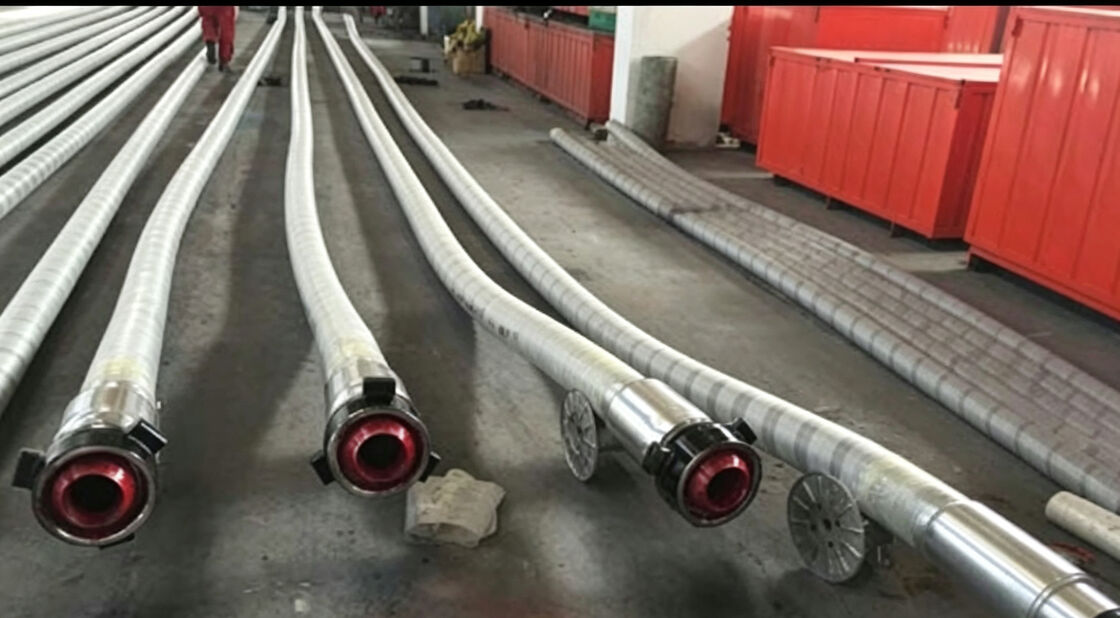

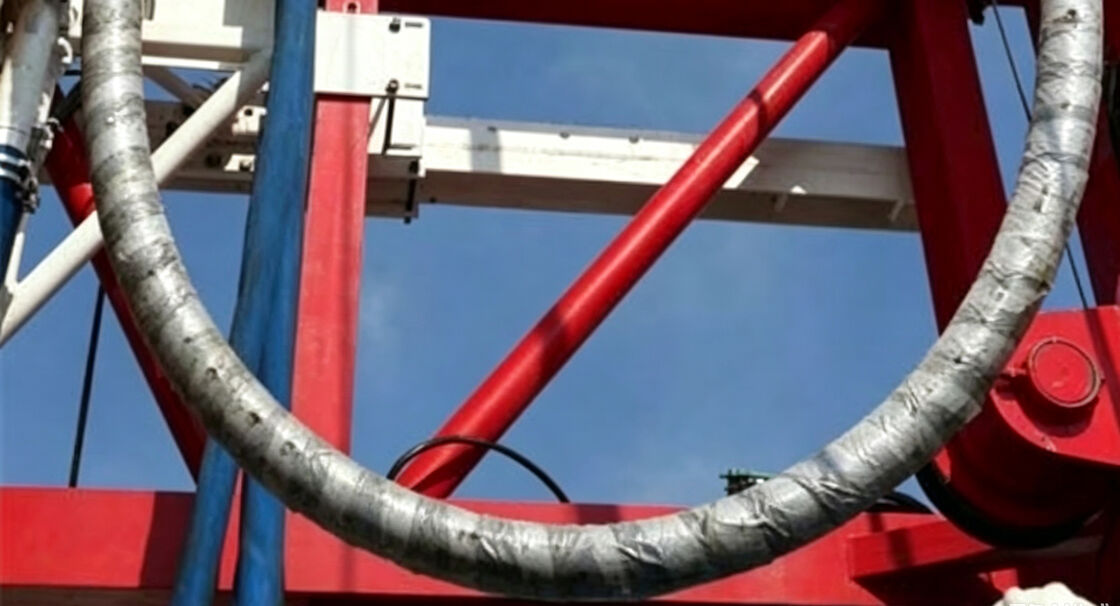

Drilling hose(rotary hose)made according to API 7K spec, applies for flexible hose connection between the top of oil drilling stand pipe and vertical moved swivel joint in well drilling, well cementing, work-over and down-hole servicing operation. drilling hose is also used to adjust the installation mistake between drilling pipe line and stand pipe to avoid shake, sometimes to transfer high pressure oil and water base mud with the lowest aniline point of 60°C from the swivel pipe in high pressure, and down-hole operation high medium such as water, oil etc, drilling rotary hose can be used for prefect work too.

▲Rotary and vibratory hoses are made in inner rubber layer and reinforced layer.

▲It can be used in well drilling, well cementing, work-over and down-hole servicing operation.

▲Drilling hoses are often equipped with API end fittings.

▲Drilling hoses are usually composed of three parts: tube, reinforcement and cover.

Rotary hose Rank Working pressure Test pressure Min. Bending Radius Max. Length Con. I.D. mm(in) O.D MPa (Psi) MPa (Psi) M 51(2”) 68.6 A 11(1,500) 21(3,000) 800 30 TBG, LP, Union 69 B 14(2,000) 28(4,000) 74.4 C 28(4,000) 56(8,000) 850 63.5(2-1/2) 81.9 A 11(1,500) 21(3,000) 900 82.3 B 14(2,000) 28(4,000) 87.7 C 28(4,000) 56(8,000) 1000 763 95.2 A 11(1,500) 21(3,000) 950 100.1 B 14(2,000) 28(4,000) 108.8 C 28(4,000) 56(8,000) 1050 89(3-1/2) 117.3 A 11(1,500) 21(3,000) 1000 119.5 B 14(2,000) 28(4,000) 122.8 C 28(4,000) 56(8,000) 1100 102(4) 128.4 A 11(1,500) 21(3,000) 1050 138.8 B 14(2,000) 28(4,000) 147.4 C 28(4,000) 56(8,000) 1100 127(5) 150.0 A 11(1,500) 21(3,000) 1200 154.1 B 14(2,000) 28(4,000) 163.0 C 28(4,000) 56(8,000) 1300 152(6) 180.0 A 11(1,500) 21(3,000) 185.0 B 14(2,000) 28(4,000) 196.0 C 28(4,000) 56(8,000) 1400 51(2) 75.0 D 35(5,000) 70(10,000) 850 80.6 E 52(7,500) 105(15,000) 900 83.2 F 70(10,000) 950 63.5(2-1/2) 107.0 D 35(5,000) 70(10,000) 1,000 110.0 E 52(7,500) 105(15,000) 1,050 114.0 F 70(10,000) 1,100 76(3) 120.0 D 35(5,000) 70(10,000) 1,150 124.0 E 52(7,500) 105(15,000) 1,100 135.0 F 70(10,000) 1,150 89(3-1/2) 133.0 D 35(5,000) 70(10,000) 1,100 146.5 E 52(7,500) 105(15,000) 1,150 153.0 F 70(10,000) 102(4) 148.0 D 35(5,000) 70(10,000) 1,100 156.3 E 52(7,500) 105(15,000) 1,150 165.0 F 70(10,000)

1200
