Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C
Model Number:
Kelly Spinner

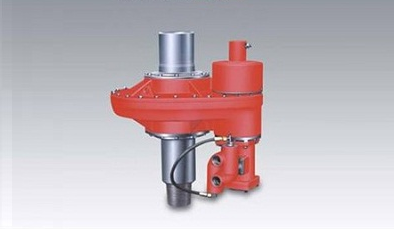

API 8c Type Oillfield Equipment Drill Pipe Kelly Spinner Kelly Revolves
Kelly spinner is a special equipment to connect single pipe by matching with mouse hole clamping device. It unitizes air motor to drive kelly to rotate, And is has the features of security, timr- saving time and high efficiency. It is designed and manufactured according to API Spec 8C “Specification For Drilling and Production Hoisting Equipment”.
| Drive mode | Pneumatic | |||
| Max. static load | 2250kN | |||
| Pressure | MPa | 0.5-0.9 | ||
| Brake torque | Nm | 1000 | 1600 | 1650 |
| Idle speed | RPM | 110 | 100 | 100 |
| Rotating direction | Single direction | Double direction | Double direction | |
| Air consumption/flow | m3/min | 9.3 | 20 | 20 |
| Stem connection | Stem connection 6-5/8 REG LH | |||
| Size | mm | 845×740×725 | 558×558×935 | 860×725×980 |
| Weight | Kg | 383 | 450 | 520 |
