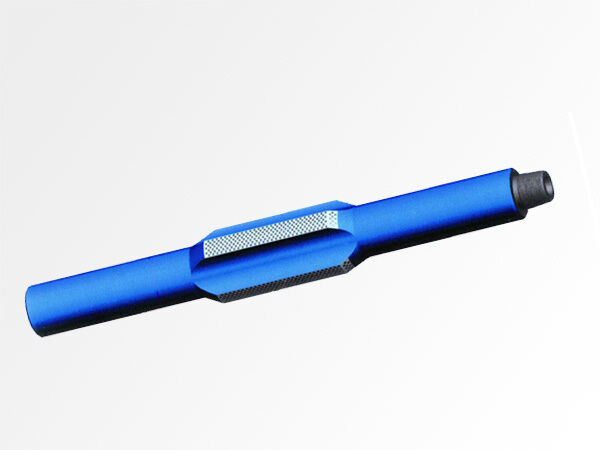

Name: Solid Roller Stabilizer High Durability Near Bit Stabilizer Downhole Tool
Brand: Xi'an Rig Oilfield Equipment Co., Ltd.
SKU: Drilling Stabilizer
Price: Negotiable USD
Availability: InStock

Home > products > Oilfield Drilling Tools >

Solid Roller Stabilizer High Durability Near Bit Stabilizer Downhole Tool

Solid Roller Stabilizer

High Durability Roller Stabilizer

High Durability Near Bit Stabilizer

Place of Origin:

China

Brand Name:

XI'AN RIG

Certification:

API

Model Number:

Drilling Stabilizer

Chat Now

Request A Quote

Product Details

Material:

Alloy Steel

Size/Diameter:

According To Requirements

Standards:

API

Application:

Drilling Rig

Type:

Solid Roller Stabilizer

Position:

Near Bit

Highlight:

Solid Roller Stabilizer

High Durability Roller Stabilizer

High Durability Near Bit Stabilizer

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Iron Frame Packaging

Delivery Time

15-30 working days

Payment Terms

L/C, T/T

Alloy Steel Snap Retainer Ring for Oilfield Mud Pump & Drilling Equipment Parts

Chat Now

API Eccentric Bearing For F-500 F-800 F-1000 F-1300 F-1600 Mud Pump

Chat Now

API Standard Connecting Rod for Oilfield Triplex Drilling Mud Pump Assembly

Chat Now

API Standard Cross Head for F‑Series Mud Pump Oilfield Drilling Spare Parts

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

API Standard Oil Well Drilling Equipment Drilling Tool Integral Spiral Stabilizer

The drilling tool stabilizer is made of AISI4145H alloy steel and follows API specifications. The threads can be processed with cold rolling, coppering or phosphating.

Function

The stabilizing effect of the stabilizer is mainly to reduce the severe radial and axial vibration of the elastic system of the
drill pipe string in the hole; Reduced drill bit and drill pipe eccentric grinding; Ensure the quality of coring; Prevent well
deviation or manual directional drilling. The structure of the stabilizer is relatively simple, it is a rough diameter joint with
rib pieces (straight or spiral). The form of its stabilizer can be divided into drill string type and bottom hole type.

both end thread size and type

Outside diameters of both ends of the stabilizer mm(in)	Dimension and type of connection thread
	Drill String Stabilizer		Near-bit Stabilizer
	top	bottom	top	bottom
121(43/4)	NC35 Internal thread	Nc35 Male thread	Nc35 Internal thread	31/2REG Internal thread
159(61/4)	Nc44 Internal thread	Nc44 Male thread	NC44 Internal thread	41/2REG Internal thread
159(61/4)	NC46 Internal thread	NC46 Male thread	NC46 Internal thread	41/2REG Internal thread
178(7)	NC50 Internal thread	Nc50 Male thread	Nc50 Internal thread	41/2REG Internal thread
203(8)	NC56 Internal thread	NC56 Male thread	NC56 Internal thread	65/8REG Internal thread
229(9)	NC61 Internal thread	NC61 Male thread	NC61 Internal thread	75/8REG Internal thread
