55/15 Well Repair Power Catwalk with API
Product Details

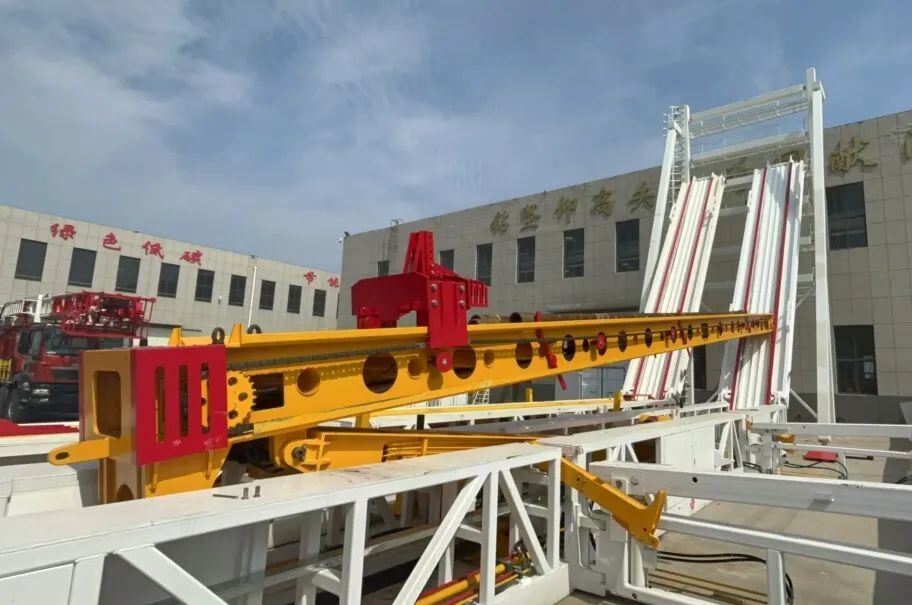

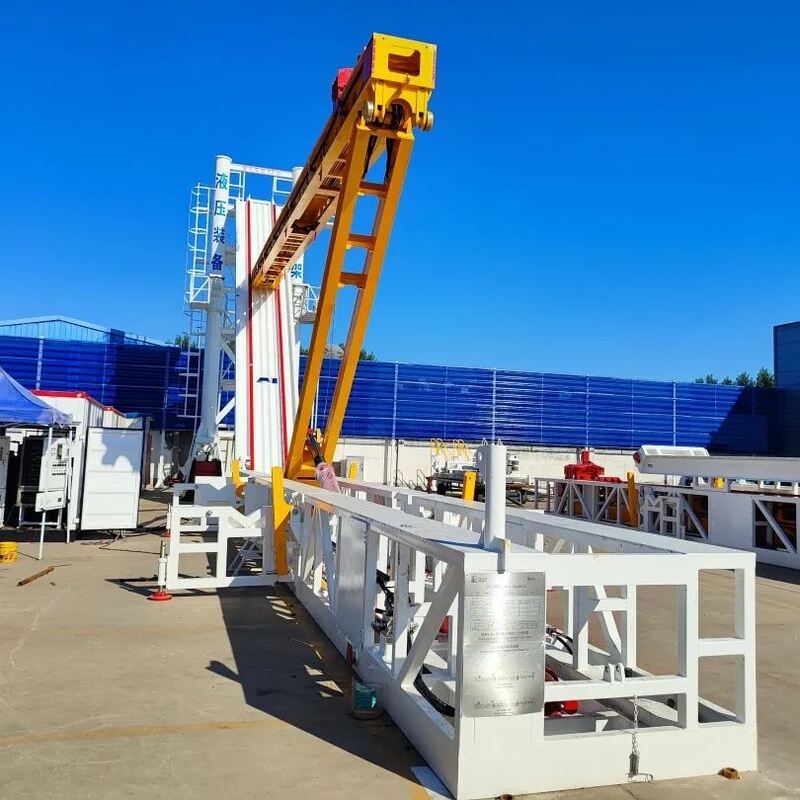

XMD55/15 well repair power catwalk is suitable for large well repair operations in oil fields. It is used to replace ordinary ramps and complete the automatic equipment for two-way transportation of drill pipes, drill collars, casings, square drill pipes and other pipes between the ground and the drilling table. It realizes automatic loading and unloading of well repair drilling tools and temporary storage of square drill pipes. It has the characteristics of high work efficiency, simple operation, convenient maintenance, safety and reliability. The power catwalk adopts a skid-mounted modular structure, which can be hoisted and moved as a whole, making it easy to move.
| Model | XMD55/15 | |
| Maximum transport column | 85/8 casing (body φ219mm, coupling φ245mm) |
|
| Maximum transport load | kg | 1500 |
| lb | 3300 | |
| Maximum transfer length | m | 12.5 |
| ft | 41 | |
| Maximum front-end lifting height | mm | 5500 |
| ft | 18 | |
| Maximum lifting height of rear end | mm | 2800 |
| ft | 9.18 | |
| V-beam sliding stroke | Mm | 4000 |
| ft | 13.12 | |
| Trolley moving stroke | mm | 12060 |
| ft | 39.56 | |
| Dimensions (folded) | mm | 13080×1600×1604 |
| 515×63×63.1 | ||
| Dimensions (expanded) | mm | 18350×4130×6678 |
| in | 722.4×162.6×262.9 | |
| Weight | kg | 12000 |
| lb | 26400 | |
