Product Description

Workover Rig Components including sealed housing sealed core and trapezoidal thread feeding tool for wellhead operations

MFH type seal assembly

Own product line:Cementing Tools Series

Product number:RIGE-MFH

Details

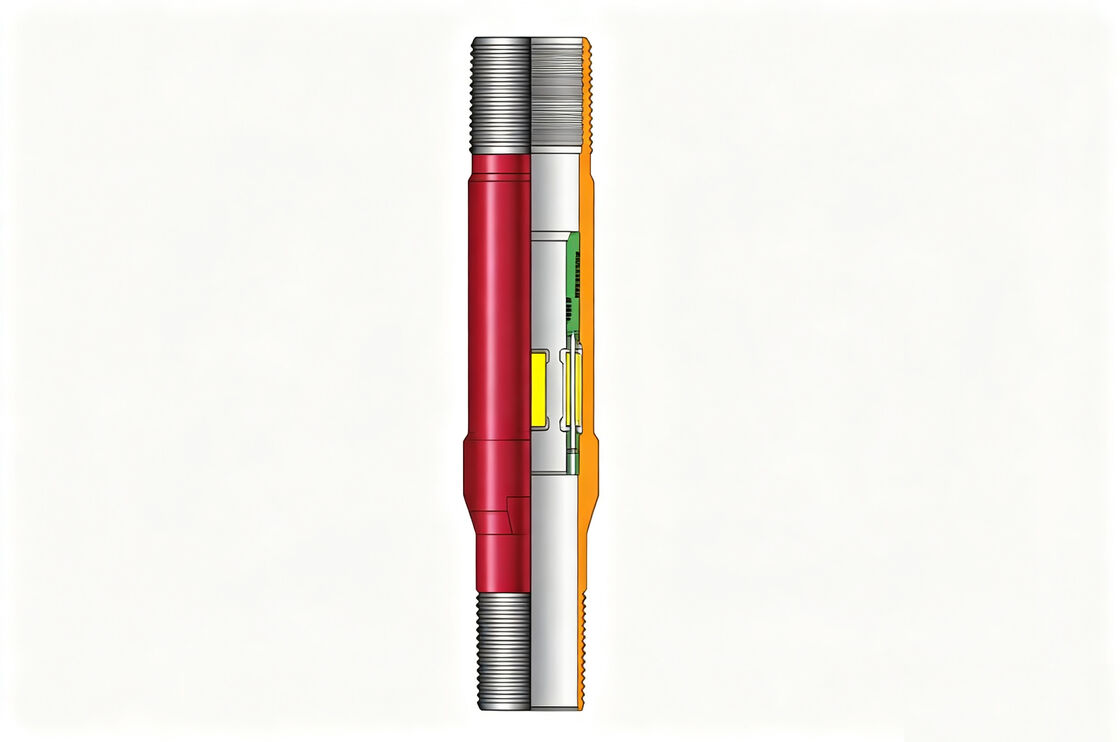

Consists of a sealed housing and a sealed core for sealing the center tube. Under the sealed casing with the hanger body, there is a left-handed trapezoidal thread connected to the feeding tool to feed the tailpipe. After hanging down the hook, into the tool and tail pipe detachment.
Features
1. The sealed core can be fed into the tool to raise the wellhead, saving the time to drill the sealed core.
2. Adopt "W" shape multi-group seal, with two-way sealing function; sealing function is greater than 25MPa.
3. Body with a righting block, which is conducive to supporting the use of hangers.
4. Can be used with RIGE-A, RIGE-B, RIGE-D, RIGE-H, RIGE-M hanger.
Specifications
A: φ177.8mm / φ139.7mm
B: φ127mm / φ114.3mm
Technical Parameters

Specifications	A	B
Sealing Capacity,MPa	25	25
Sinistral-thread	T166x5teeth/in	T118x5
Body I.D.,mm	157	108
