Name: Type ZJ30 High Quality mechanical drilling rig Land Oil Rigs Used for Oilfield Exploration
Brand: Xi'an Rig Oilfield Equipment Co., Ltd.
SKU: ZJ30
Price: Negotiable USD
Availability: InStock

Home > products > Land Drilling Rig >

Type ZJ30 High Quality mechanical drilling rig Land Oil Rigs Used for Oilfield Exploration

zj30 land drilling rig

zj30 mechanical drilling rig

Place of Origin:

China

Brand Name:

XI'AN RIG

Certification:

API 8C

Model Number:

ZJ30

Chat Now

Request A Quote

Product Details

Nominal Drilling Depth Range (m):

1600–3000

Max. Hook Load (kN):

1800

Number Of Lines:

Drawworks Power (HP):

750

Braking System:

Hydraulic Disc Brake

Model:

ZJ30

Highlight:

zj30 land drilling rig

zj30 mechanical drilling rig

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Payment Terms

L/C, T/T

Type ZJ30 High Quality mechanical drilling rig Land Oil Rigs Used for Oilfield Exploration

Chat Now

Heavy Duty VFD Electric Driven Drilling Rig API Compliant Electric Drilling Unit for Oilfield Exploration

Chat Now

API 7K Onshore Drilling Rig 1000m Oilfield Drilling Rig ZJ10 For Oil Drilling

Chat Now

3000m Land Drilling Rig 200 Ton ZJ30 Drilling Rig API 7K For Oil Well Drilling

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

Type ZJ30 High Quality mechanical drilling rig Land Oil Rigs Used for Oilfield Exploration

Features

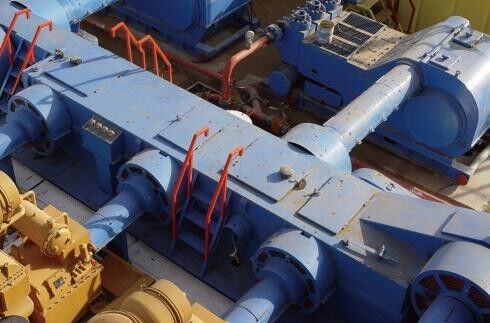

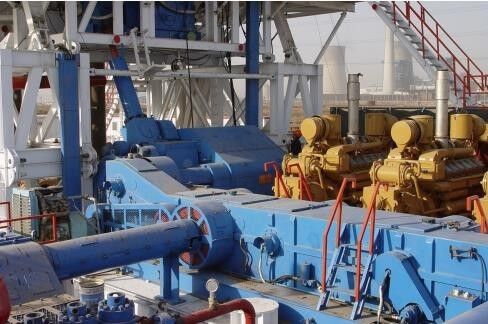

◆ The mechanical drilling rig is diesel-driven. The chain box realizes power combination to drive the winch and mud pump. The rotary table chain box is driven via the platform cardan shaft to rotate the rotary table.

◆ The power system adopts a diesel engine plus hydraulic coupling unit with modular design. Each module is connected by cardan shafts, enabling convenient disassembly and installation.

◆ The winch is designed with 4 forward gears and 2 reverse gears, equipped with hydraulic disc brakes and a driller’s cabin, which optimizes the working environment and reduces labor intensity for drillers.

◆ The winch adopts pneumatic tube clutch for gear shifting, which supports remote control operation with high efficiency and convenience.

◆ The cathead winch is equipped with a sand reel and adopts an integral or split structure.

◆ The integral chain box is applied for power combination, featuring a high degree of modularization and rapid on-site installation.

◆ The rotary table is driven by a platform-mounted cardan shaft, ensuring simple and convenient installation.

Parameter	ZJ30/1800	ZJ40/2250	ZJ50/3150	ZJ70/4500	ZJ90/6750
Nominal Drilling Depth Range (m)	1600–3000	2500–4000	3500–5000	4500–7000	6000–9000
Max. Hook Load (kN)	1800	2250	3150	4500	6750
Number of Lines	10	10	12	12	14
Wireline Diameter (mm)	Φ32 (1¼ in)	Φ32 (1¼ in)	Φ35 (1⅜ in)	Φ35 (1½ in)	Φ42 (1⅝ in)
Drawworks Power (HP)	750	1000	1500	2000	3000
Rotary Table Bore Diameter (in)	20½	20½ / 27½	27½ / 37½	37½	49½
Working Height (m / ft)	39 / 128	43 / 142	45 / 147	45 / 147	46 / 152
Drill Floor Height (m / ft)	6 / 20	7.5 / 25	9 / 30	9 / 30; 10.5 / 35	10.5 / 35; 12 / 40
Drill Floor Clearance Height (m / ft)	4.9 / 16	6.26 / 20.5	8.92 / 29.3	7.42 / 24.5; 8.92 / 29.3	8.7 / 28.5; 10 / 33
Mud Pump Power	2×800 HP	2×1000 HP	2×1600 HP	3×1600 HP	3×2200 HP
Power Configuration	2×1555 HP	3×1555 HP	3×1555 HP	4×1555 HP	5×1555 HP
