Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
V-Belt

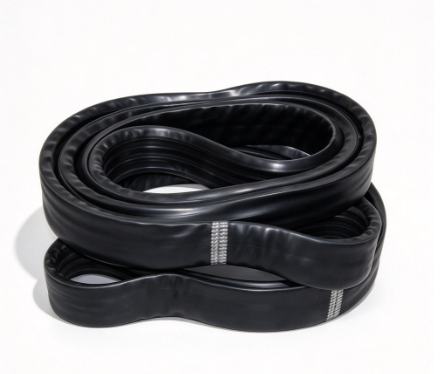

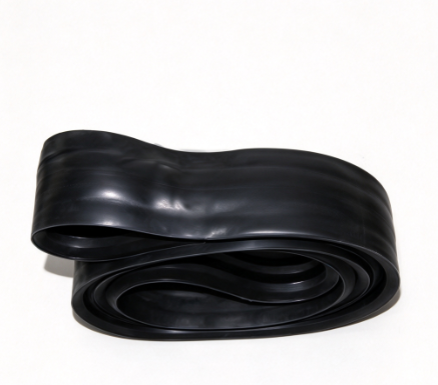

High Strength V-Belt for Oilfield Drilling Mud Pump Power Transmission
Characteristics:
Banded V-belt is connected by the connect layers and many narrow v-belts to a whole.When it is transporting,can be canceled the disadvantages of shaking,flapping and turning over etc.It make each belt stress evenly and can carry large load.
Mark:
The marked sequence of banded v-belt is as the type,numbers of banded,length size and length mark.It is marked to the outside perimeter of belt. If customers have special requirements,please mark the requirements in the product list.Please find the conversion of various model above the list.
|
Production type |
Top width |
Pitch width |
Height |
Angle |
Length range(inch) |
Length range(mm) |
|
3V(9J) |
9.7 |
10.3 |
9.7 |
40° |
47″--197″ |
1200—5000 |
|
5V(15J) |
15.7 |
17.5 |
15.7 |
40° |
59″--394″ |
1500—10000 |
|
8V(25J) |
25.4 |
28.6 |
25.4 |
40° |
79″--394″ |
2000—10000 |
|
SPZ |
10.5 |
/ |
10.0 |
40° |
47″--197″ |
1200—1500 |
|
SPA |
13.6 |
/ |
12.3 |
40° |
47″--197″ |
1200—1500 |
|
SPB |
17.0 |
/ |
16.5 |
40° |
39″--394″ |
1500—10000 |
|
SPC |
22.0 |
/ |
21.0 |
40° |
118″--492″ |
3000--12500 |
