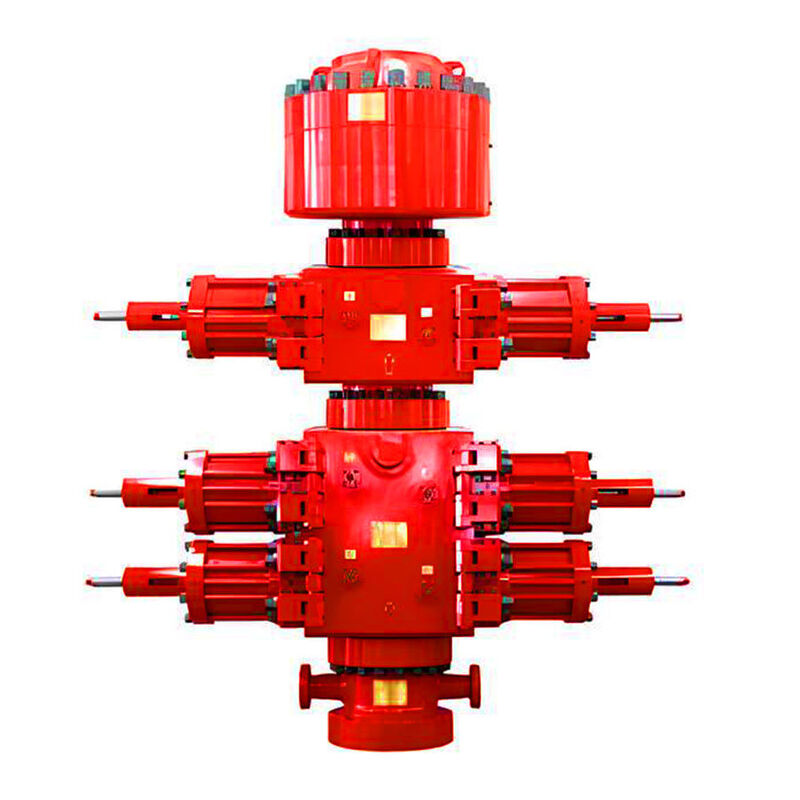

API 16A Blowout Preventers Geothermal Drilling BOP Stack

API16A Blowout Preventers (BOP) and BOP Stacks

Xi'An rig offers a range of annular and ram blowout preventers (BOPs) and BOP stacks for oil, gas, geothermal drilling, well intervention, and underbalanced drilling. Available in various models and specifications to meet industry standards.

Xi'An rig provides a comprehensive selection of blowout preventers (BOPs) and BOP stacks, including annular BOPs with spherical and conical rubber cores and ram BOPs with U-type, UM-type, and S-type cavity structures. These BOPs are designed for use in oil, gas, geothermal drilling, well intervention, and underbalanced drilling, ensuring robust well control and safety.

Annular BOPs:

• Spherical Rubber Core: Simple structure, easy disassembly, and reliable sealing.
• Conical Rubber Core: Only the piston and conical rubber core are moving parts, reducing wear and extending the lifespan.

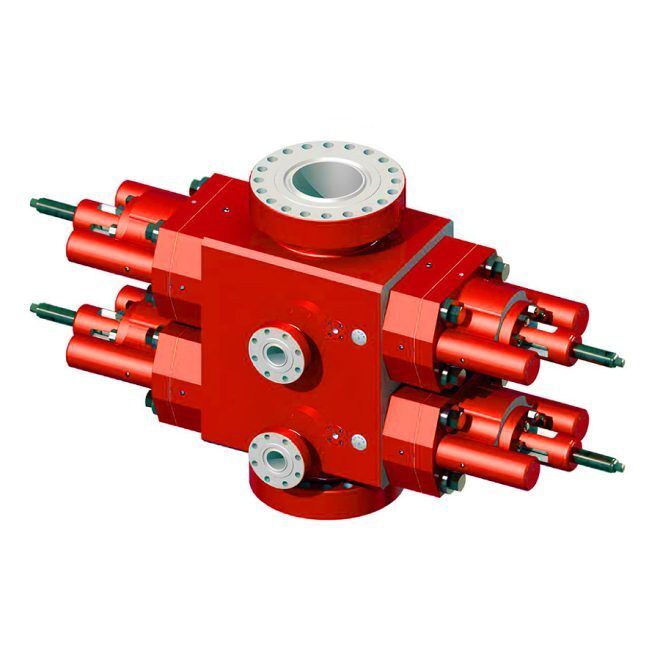

Ram BOPs:

• U-Type: Long oval-shaped body to reduce stress concentration, easy ram replacement, compact size, suitable for forging and cladding products.
• UM-Type: Hydraulic side-door opening, long oval-shaped body, interchangeable shear and regular cavities, easy maintenance, long service life.
• S-Type: Integral casting body, easy machining, hinged side-door opening, ram chamber with arc and guide ribs to prevent jamming, flat top seal for easy maintenance, cost-effective.

Specifications

Well Intervention Series

• Nominal Diameter: 2 9/16” ~ 7 1/16”
• Pressure Rating: 2000psi ~ 20,000psi

Drilling Series

• Nominal Diameter: 9” ~ 30”
• Pressure Rating: 500psi ~ 20,000psi
