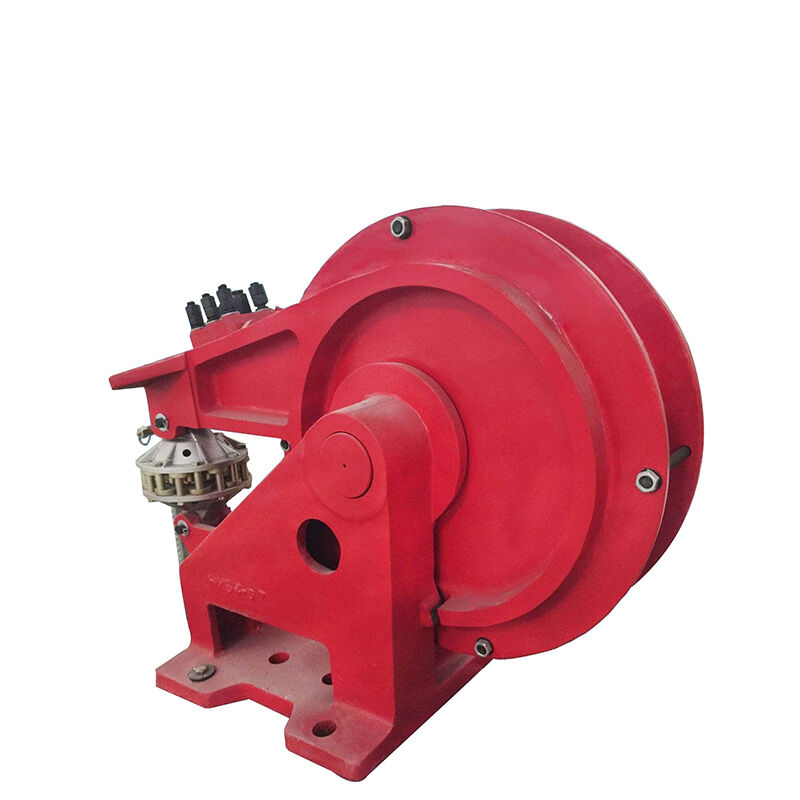

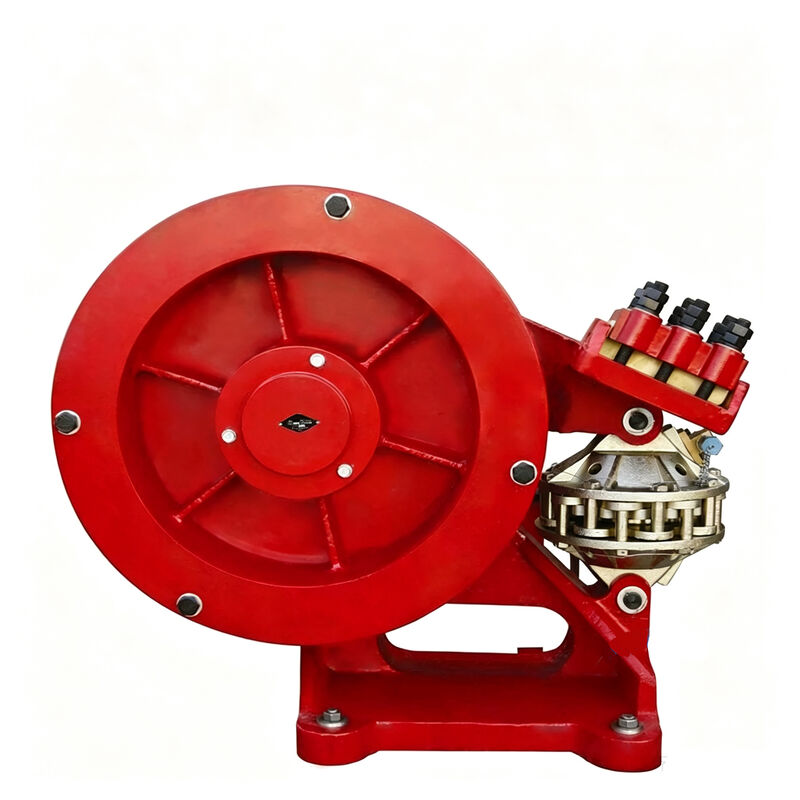

Alloy Steel Deadline Anchor API 8C / 8A Oilfield Spare Parts

Alloy Steel Deadline Anchor API 8C / 8A Oilfield Spare Parts

Alloy Steel Deadline Anchor

Deadline Anchor API 8C

API 8A Oilfield Spare Parts

Place of Origin:

China

Brand Name:

XI'AN RIG

Certification:

API 8C/8A

Model Number:

JZG35

Chat Now
Request A Quote
Alloy Steel Deadline Anchor API 8C / 8A Oilfield Spare Parts Alloy Steel Deadline Anchor API 8C / 8A Oilfield Spare Parts
Product Details
Power Source:
Hydraulic
Applicable Medium:
Mud, Water, Crude Oil
Structure:
Horizontal
Material:
Alloy Steel
Type:
Deadline Anchor
Standard:
API 8C And 8A
Highlight:

Alloy Steel Deadline Anchor

,

Deadline Anchor API 8C

,

API 8A Oilfield Spare Parts

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Payment Terms
L/C, T/T
RELATED PRODUCTS
Good price XJ700 Well Servicing Rig Vehicle Mounted Oil Field Workover Rig XJ250 online

XJ700 Well Servicing Rig Vehicle Mounted Oil Field Workover Rig XJ250

Chat Now
Good price XJ900 Workover Rig Vehicle Mounted Oil Well Service Rig XJ350 online

XJ900 Workover Rig Vehicle Mounted Oil Well Service Rig XJ350

Chat Now
Good price XJ1100(XJ450) vehicle mounted workover rig online

XJ1100(XJ450) vehicle mounted workover rig

Chat Now
Good price XJ1350(XJ550) Vehicle-mounted workover rig online

XJ1350(XJ550) Vehicle-mounted workover rig

Chat Now
CONTACT US
8618291452987
depart01@xianrig.com
Chat Now
Product Description

JZG35 API 8C/8A Deadline Anchor Used for Oilfield Drilling and Workover Rigs

Product Description

Dead line anchor is used as a display instrument for indicating and recording the drilling string changes in weight and pressure, helping the driller to master the working parameter and judge the drilling state in drilling operation. It's mainly composed two parts: Body and Senor. It work together with the Weight indictor.

Feature:

  1. Can be used in drilling rig, workover drilling rig etc.
  2. Material is High strength steel, extended the service time.
  3. 1.5 times pressure and tensile test before leaving the factory, high precision, stability, etc.
  4. Two forms, horizontal and vertical.



Advantages
1.High Load & Anti-Fatigue Performance: Main body is forged from 42CrMo high-strength alloy steel, with quenched & tempered heat treatment, yield strength ≥ 850MPa, rated load capacity 25% higher than the minimum requirement of API 8C, with optimized anti-fatigue structure design, service life up to 3 times that of ordinary cast iron anchors, able to withstand long-term high-frequency vibration and impact in harsh drilling environments.
Drill Line Protection Design: Patented anti-slip clamp structure, with V-shaped grooves matched to standard drill line specifications (1-1/4" to 2-1/2"), evenly distributes clamping force, avoids extrusion damage and uneven wear of the wire rope, extends drill line service life by 20%+, reduces rope replacement frequency by 30%, and effectively reduces customers' operational costs.

2.Strong Environmental Adaptability: Optional hot-dip galvanizing or fluorocarbon anti-corrosion coating, with 480h+ neutral salt spray test resistance, suitable for high-temperature, high-humidity and high-salt environments such as Middle East deserts and offshore platforms; low-temperature resistant materials can adapt to -40℃ extreme cold environments, suitable for Russian Siberia, Bashkortostan and other cold region oilfields.

Model
JZG72
JZG46
JZG41
JZG35
JZG34A
Max. Dead Line Pulling Force
720kN
460kN
410kN
350
340
Output Pressure MPa
9
6.83
6.83
6
6
Diameter of the rope mm
45
38
38
35
35
Precision Grade
± 1%
± 1%
± 1%
± 1%
± 1%
