Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C
Model Number:
API 6A

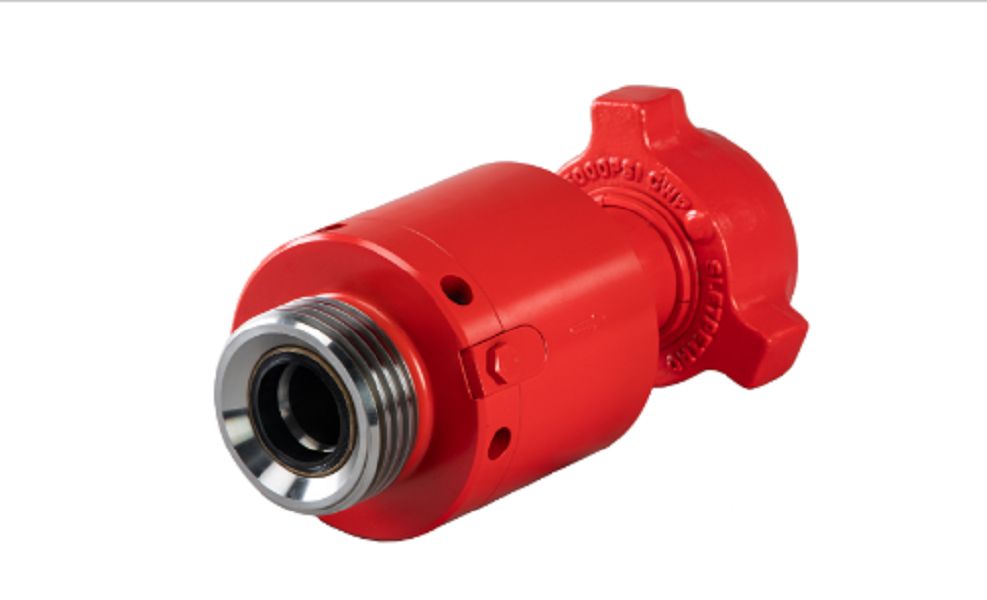

Check valves are used in high pressure lines to control one-way flow and prevent fluid from flowing back in pipeline, while protecting the pipe line and equipment safety. The core component of check valve is forged by stainless steel with advanced erosion and abrasion-resistant characteristics. The seals use secondary vulcanization resulting in ultimate sealing.

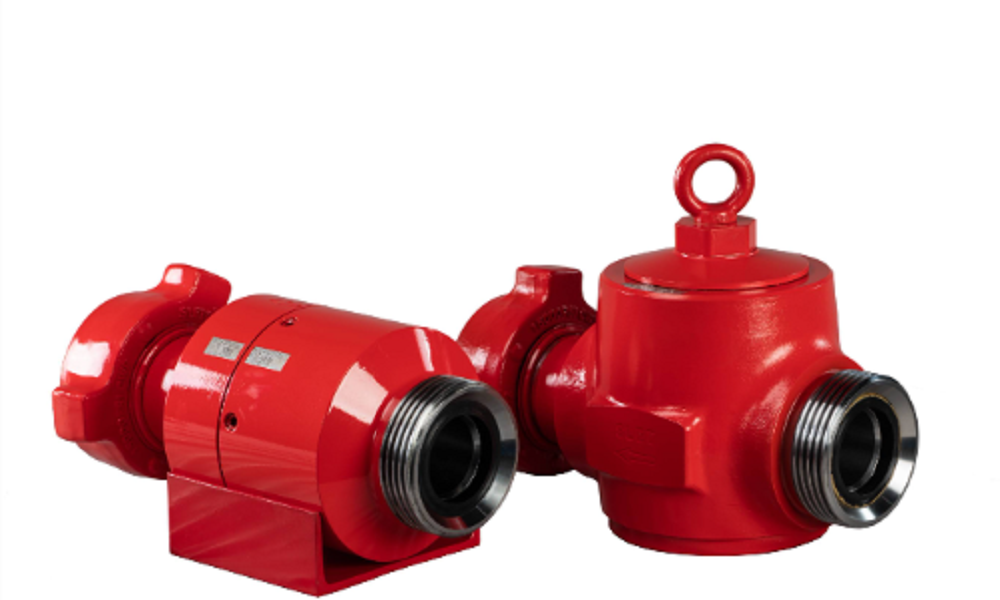

SLETPETRO can provide top-entry check valves, in-line flapper check valves and dart check valves. Flappers check valves are mainly used in fluid or fluid solid mixture condition. Dart check valves are mainly used in gas or pure fluid with low viscosity condition.
Product Specifications
Nominal Size : 2" ~ 3"
Temperature Rating: -29℃ ~ 121℃ (PU)
Service: Standard,Sour Gas
anufacturing standard: API 6A & NACE MR0175
Top entry check valves
| ominal Size | End Connections | Flow Direction | Rated Working Pressure Mpa/Psi | Dimensions(mm) | Service | |||
| FIG | Type | L | B | H | ||||
| 2" | FIG1502 | FXM | Standard | 105/15000 | 332 | 87 | 308 | Standard |
| 2" | FIG1502 | FXM | Reverse | 105/15000 | 332 | 87 | 308 | Standard |
| 3" | FIG1502 | FXM | Standard | 105/15000 | 402.5 | 98 | 353 | Standard |
| 3" | FIG1502 | FXM | Reverse | 105/15000 | 402.5 | 98 | 353 | Standard |
