Place of Origin:
China
Brand Name:
RIG
Certification:
API 7K
Model Number:
F-1000

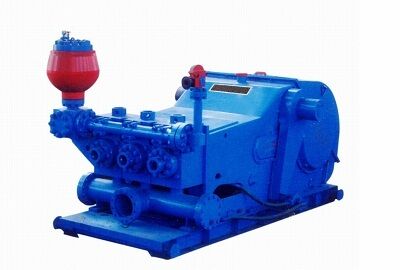

API 7K 800HP F800 Mud Pump for Land Drilling Rig
| Model | F800 | F1000 | F1300 |
| Type | Triple cylinder, single action and piston type | Triple cylinder, single action and piston type | Triple cylinder, single action and piston type |
| Max. cylinder liner Dia stroke | 170×229mm(6-3/4″×9″) | 170×254mm(6-3/4″×10″ | 180×305mm(7″×12″) |
| Rated strokes | 150r/min | 140r/min | 120r/min |
| Rated power | 596kW(800hp) | 746kW(1000hp) | 969kW(1300hp) |
| Gear type | A-type gear | A-type gear | A-type gear |
| Gear speed ratio | 4.185:1 | 4.207:1 | 4.206:1 |
| Lubrication | Forced and splashed lubrication | Forced and splashed lubrication | Forced and splashed lubrication |
| Suction | 10″flange (about 254mm) | 12″flange (about 305mm) | 12″flange (about 305mm) |
| Discharge | 5″flange 5000psi | 5″flange 5000psi | 5″flange 5000psi |
| Diameter. of the small gear shaft | 177.8mm(7″) | 196.9mm(7-3/4″) | 215.9mm(8-1/2″) |
| Pin Key | 44.45×44.45mm (1-3/4″×1-3/4″) |
50.8×50.8mm (2″×2″) |
50.8×50.8mm (2″×2″) |
| Valve chamber | Top body of the valveAPI#6 | Top body of the valveAPI#6 | Top body of the valveAPI#7 |
| Approximate weight | 14000 kg 30837lb |
18790 kg 41420 lb |
24572 kg 54170 lb |
