Fracturing Wellhead Tools API 7K Suction Buffer Absorbs Energy

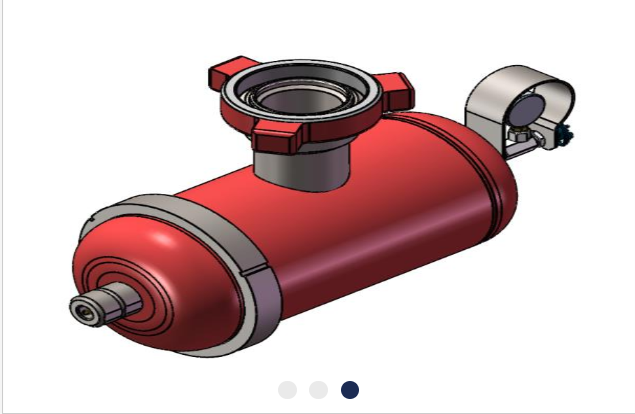

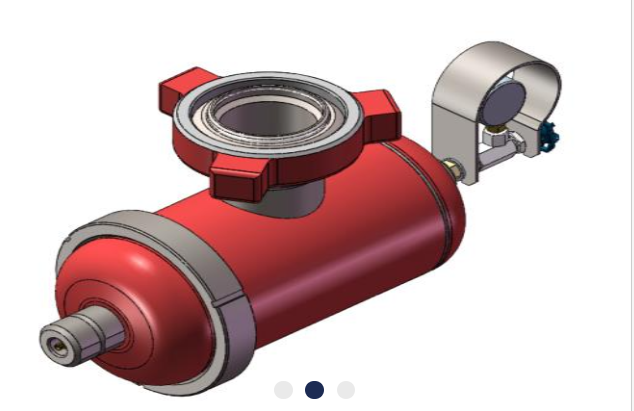

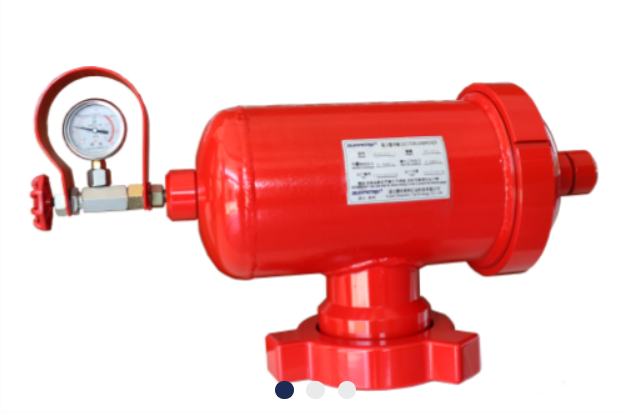

API 7k Suction Buffer for Mud Pump

Suction buffer is a special device specially designed for fracturing operation. It ismainly used at the front end of the suction manifold of the fracturing pump toensure the stability of the suction valve body when the fracturing pump is working.

The buffer uses gas to absorb the energy of fracturing fluid impact and release itgently to prolong the time of velocity change, so as to reduce the large impact offracturing pump components and avoid collision damage, so as to ensure the
stability of the suction valve body when the fracturing pump is working.

product feature

Feactures:Model YH625-2-- Joint: 4" hammer union-- Volume: 625- Air bag material: ethylene propylene rubber-- Maximum working pressure: 4.8Mpa
--High temperature resistance: 100°C optimum, 176 °C well-formed
Model YH1350-2-- Joint: 4 "hammer union-- Volume: 1350
- Air bag material: ethylene propylene rubber
-- Maximum working pressure: 4.8Mpa
--High temperature resistance: 100°C optimum, 176 °C well-formed
