Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 6A
Model Number:
Fig1502

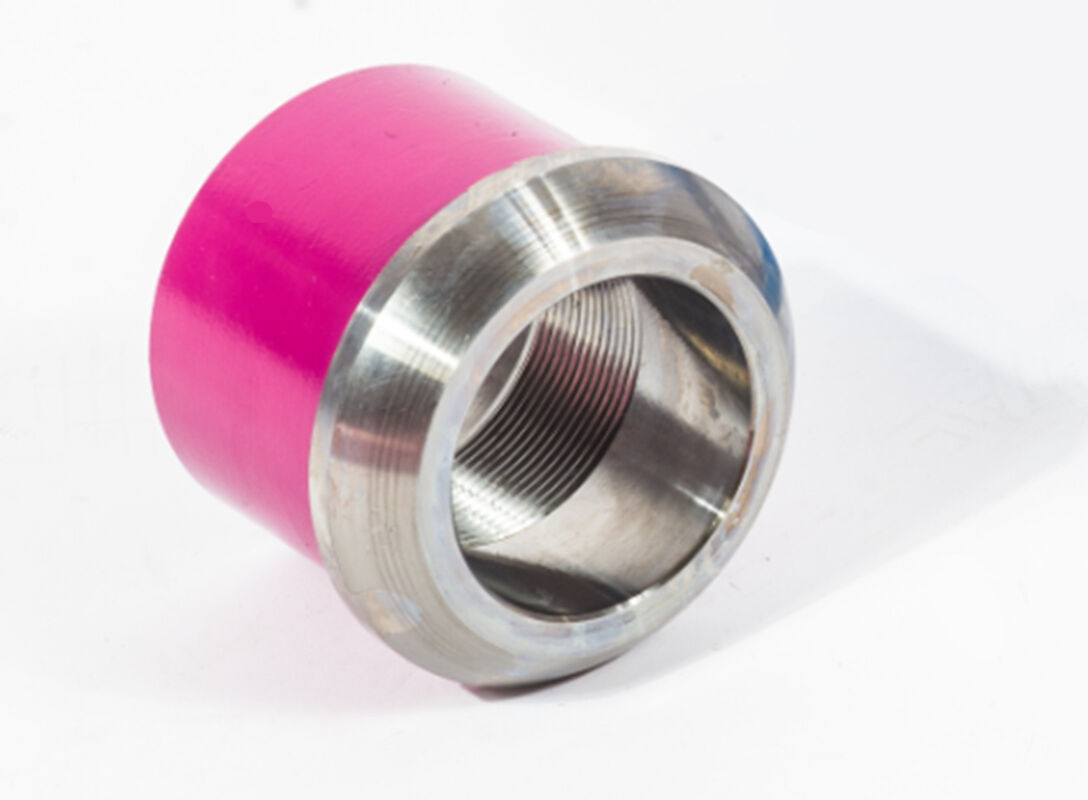

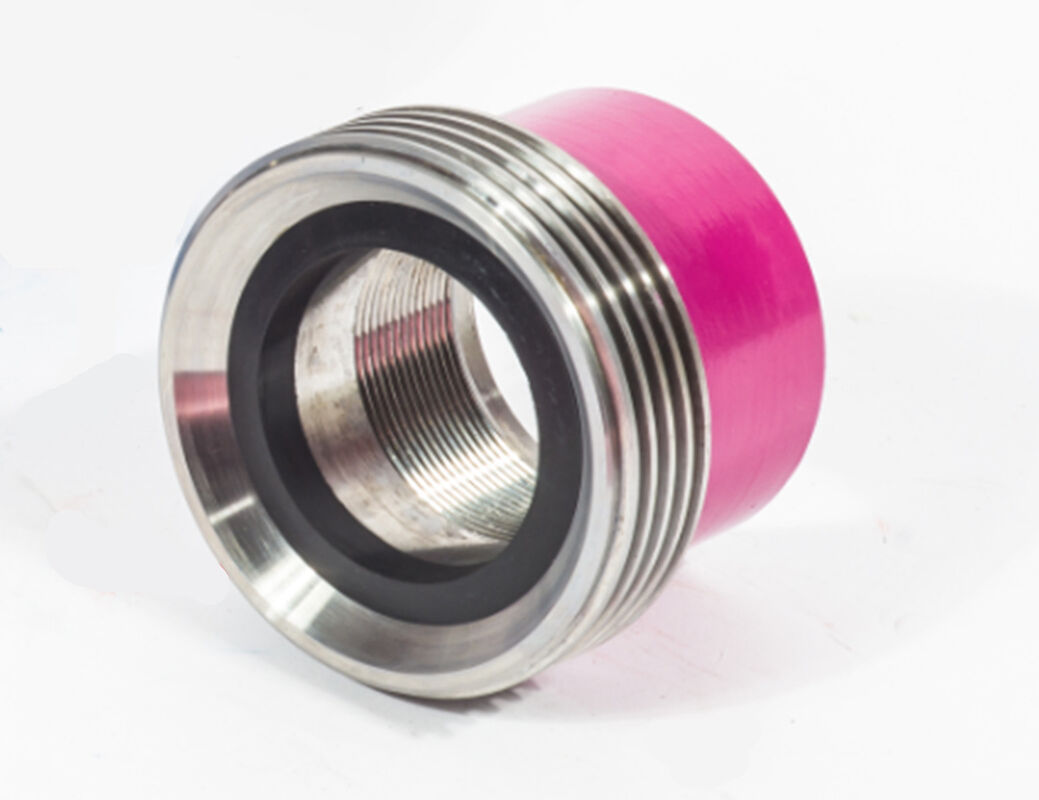

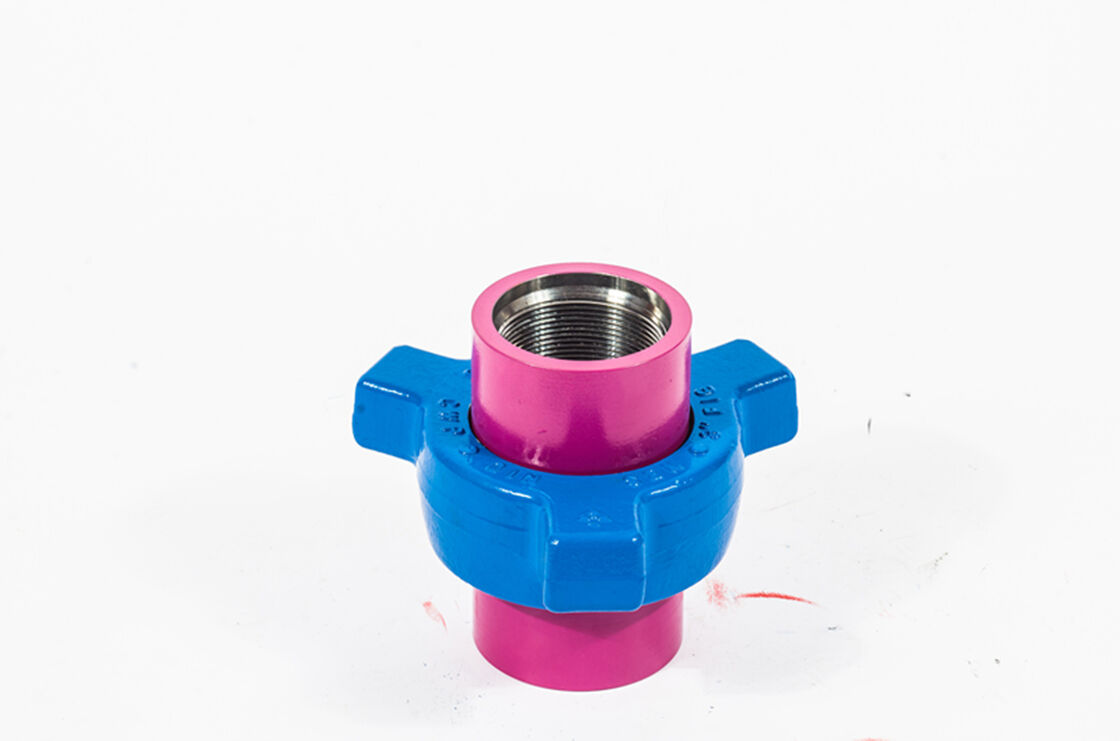

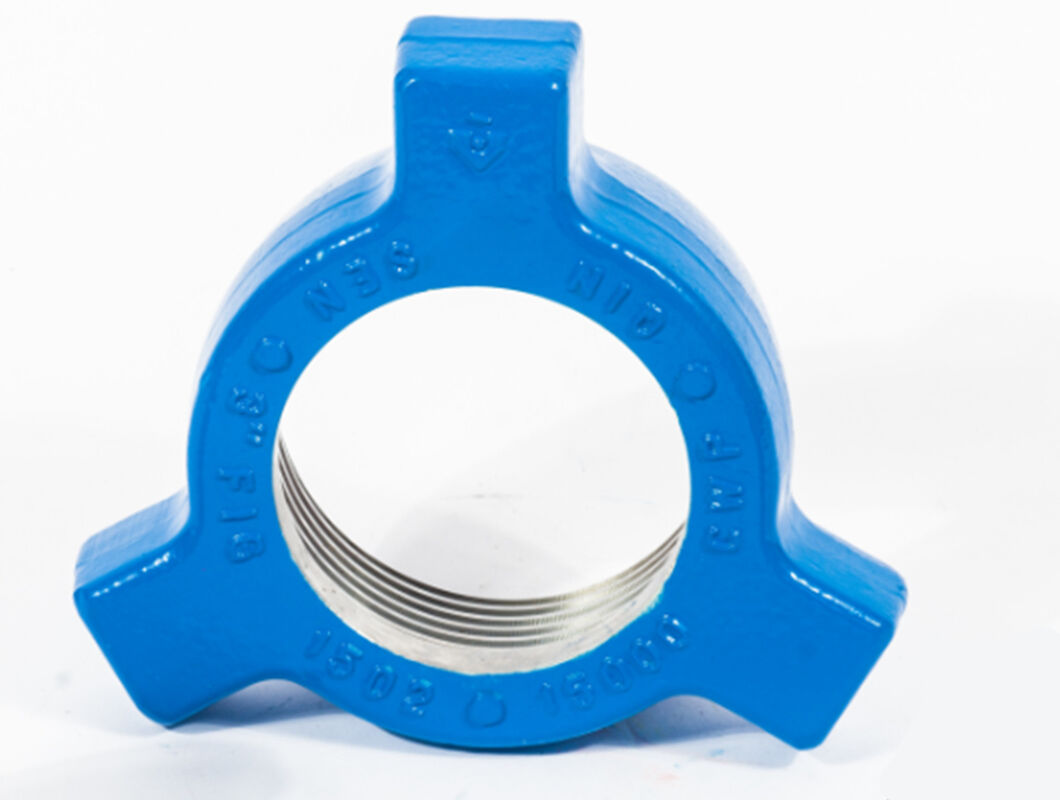

API 6A High-Pressure Union Fig1502 NPT Thread Hammer Union for Oilfield
High pressure union, importing advanced technology, is forged with high-strength alloy steel, strict heat treatment process can ensure that the nipple have uniform metallurgical structure and pressing ability and the material meets ASTM and AISI standard, the technology indexes conform to API Spec 6A, the product adopts some end connection of pipeline thread, butt-weld and compress-seal.
| Nominal pipe size | Total length | Countersink | Nut radius | Material | Weight | ||||||
| Nut | Part | ||||||||||
| in | mm | in | mm | in | mm | in | mm | lb | kg | ||
| 1-1/2 | 38.1 | 5-13/32 | 137.0 | 1/4 | 6.4 | 3-21/32 | 93.0 | SF | SF | 12.0 | 5.4 |
| 2 | 50.8 | 7 | 177.8 | 15/64 | 6.0 | 3-3/4 | 95.3 | SF | SF | 21.0 | 9.5 |
| 3 | 76.2 | 7-5/8 | 193.7 | 3/8 | 9.5 | 4-1/2 | 114.3 | SF | SF | 31.0 | 14.1 |
| 4 | 101.6 | 8-3/5 | 218.4 | 3/8 | 9.5 | 6 | 152.4 | SF | SF | 74 | 33.7 |
