Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 6A
Model Number:
Fig602

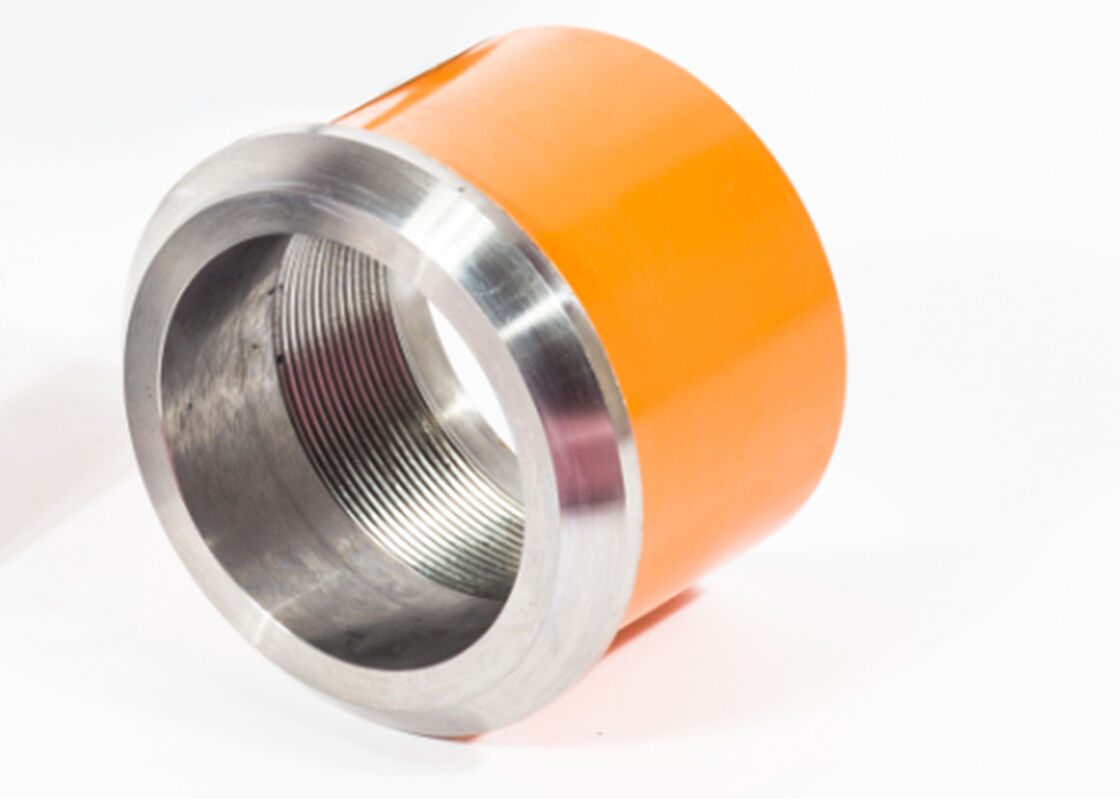

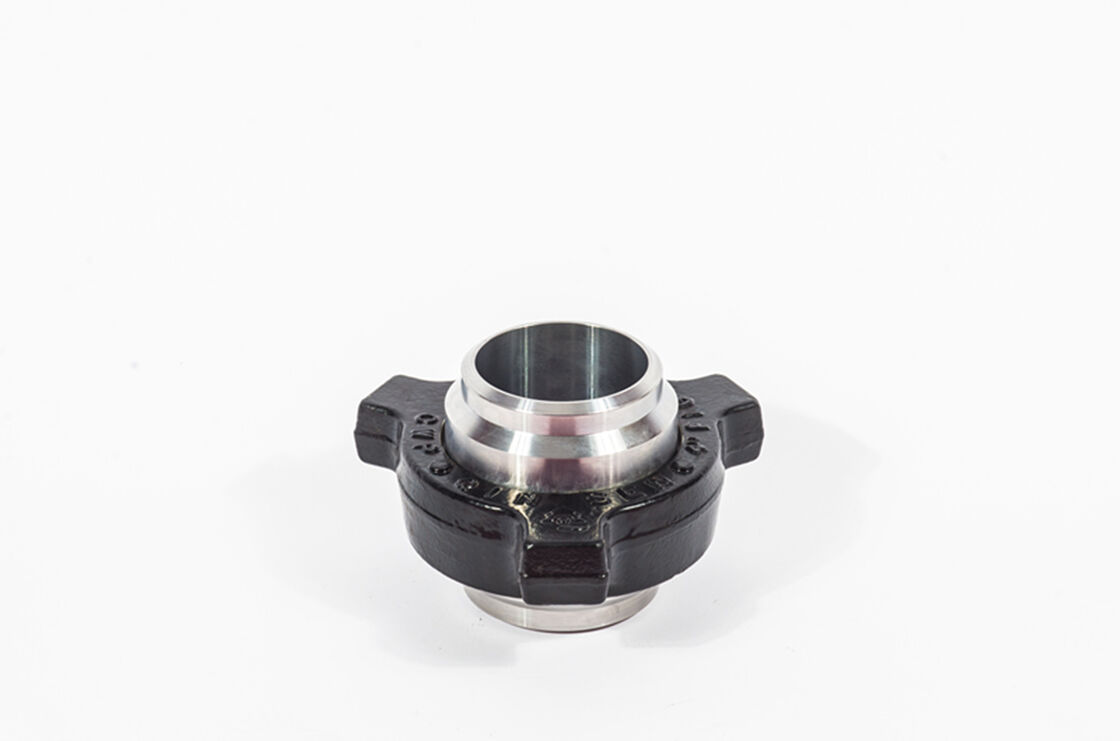

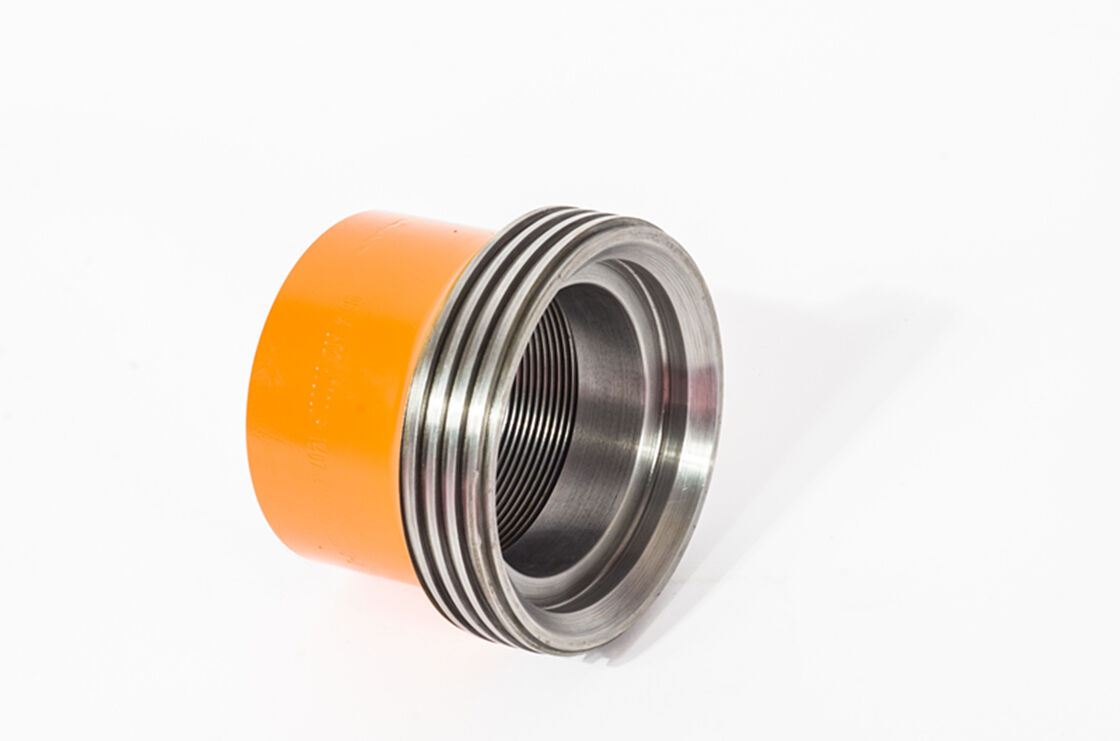

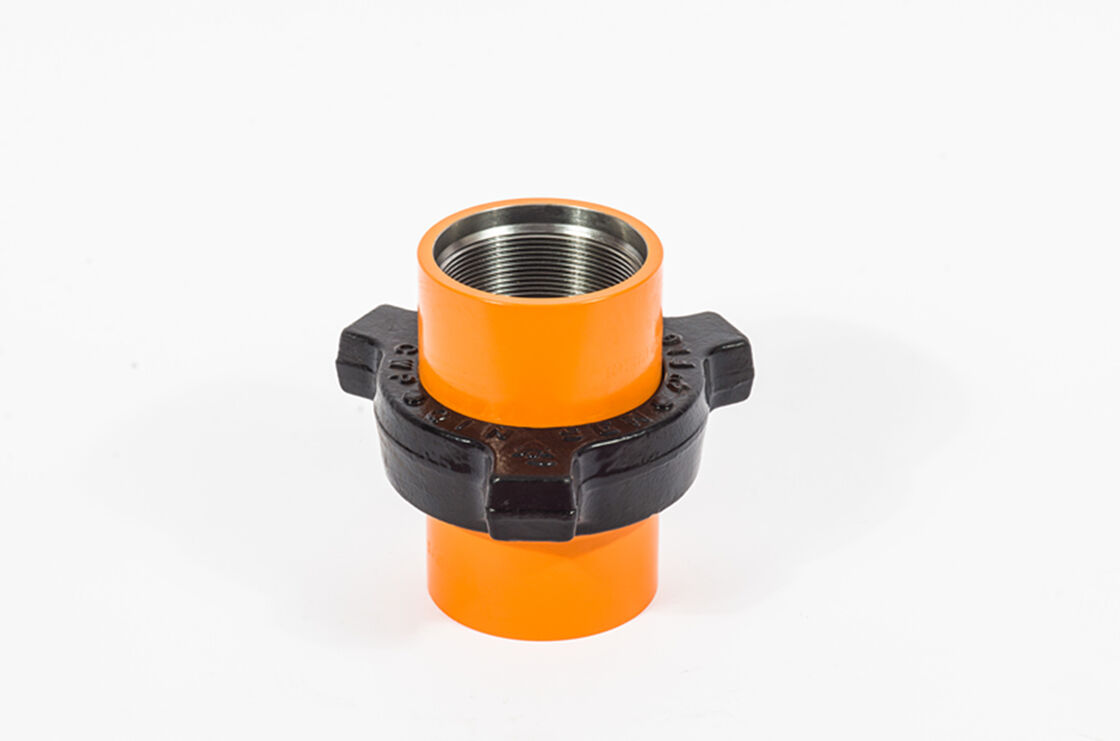

Fig 602 API Certificate Stainless Steel Hammer Union
Hammer union is mainly used in oil industry in high-pressure pipline connection. Size have 1" to 5", work the pressure 7Mpa to140Mpa(1000psi-20000psi), the API 6A and 16C cetification, prevent H2S union according to the NACE MR 0175.
Design features:
1.with self-lockubf type ACME thread design;
2. repd tightening and remove;
3. made by international standard, and can be interchangeable with imported parts;
4. Seal with high pressure resistance;
5.Using NC mechine tool processing Seiko degree is high;

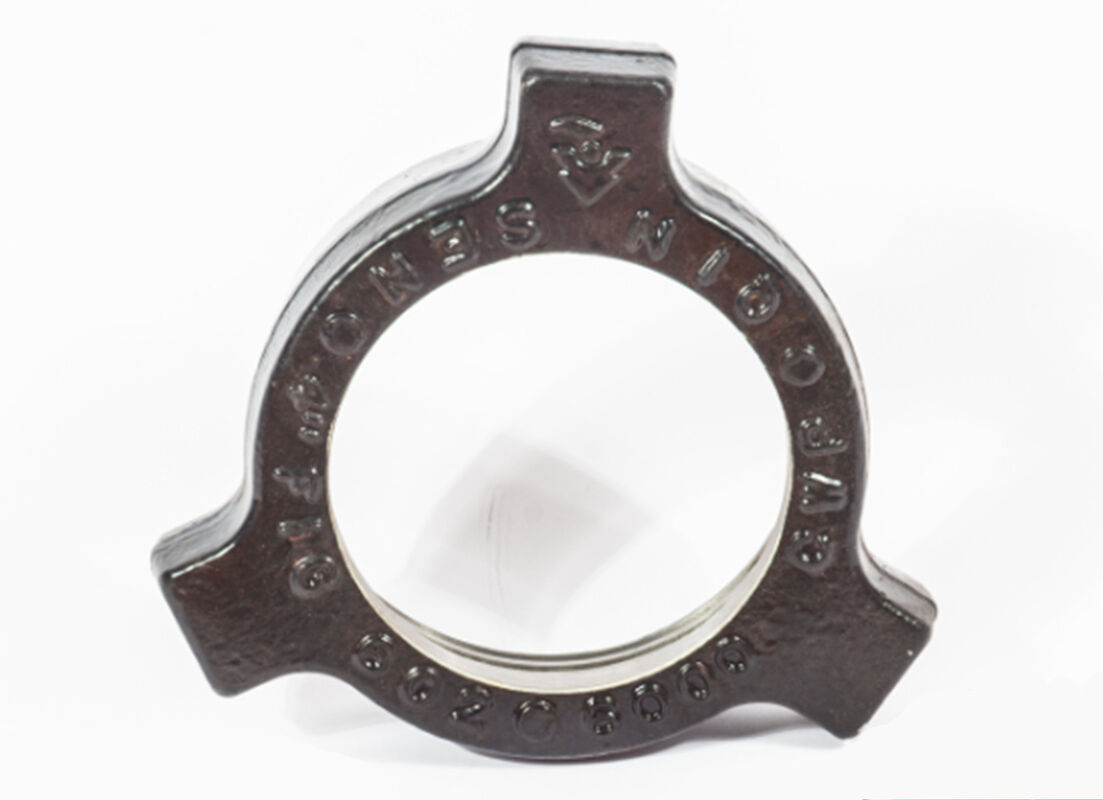

6. Type, specification identifies die forging on the wing nut, identification and convenient;
| Size | Size | Weight(lbs) | Weight(kg) | Dimension A(in.) | Dimension B(in.) | Dimension C(in.) | TPI | Material‑Nuts | Material‑Sub |
| (inches) | (mm) | ||||||||
| 1" | 25 | 3.3 | 1.5 | 3.54 | 1.77 | 4.72 | 6STD | Steel forging | Steel forging |
| 2" | 50 | 12.15 | 5.52 | 5.31 | 2.93 | 6.89 | 3MOD | Steel forging | Steel forging |
| 3" | 80 | 22 | 9.99 | 6.5 | 4.29 | 8.62 | 3MOD | Steel forging | Steel forging |
| 4" | 100 | 31 | 14.07 | 8.23 | 5.2 | 9.92 | 3MOD | Steel forging | Steel forging |
