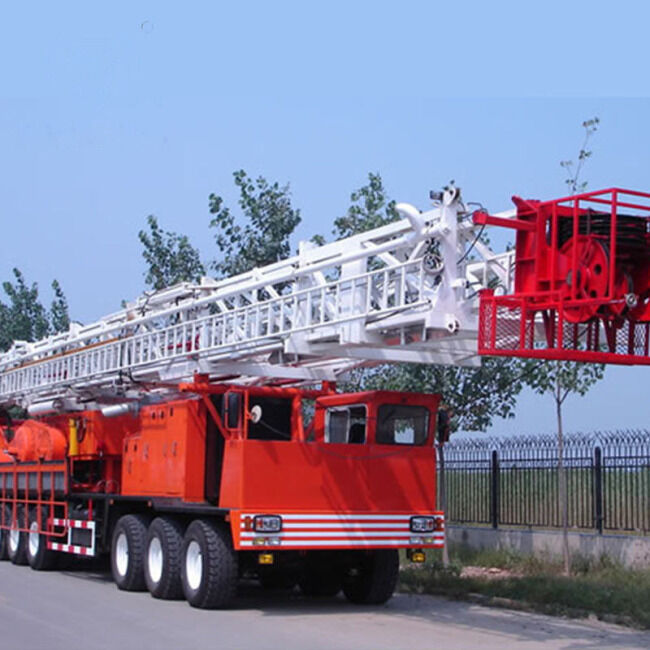

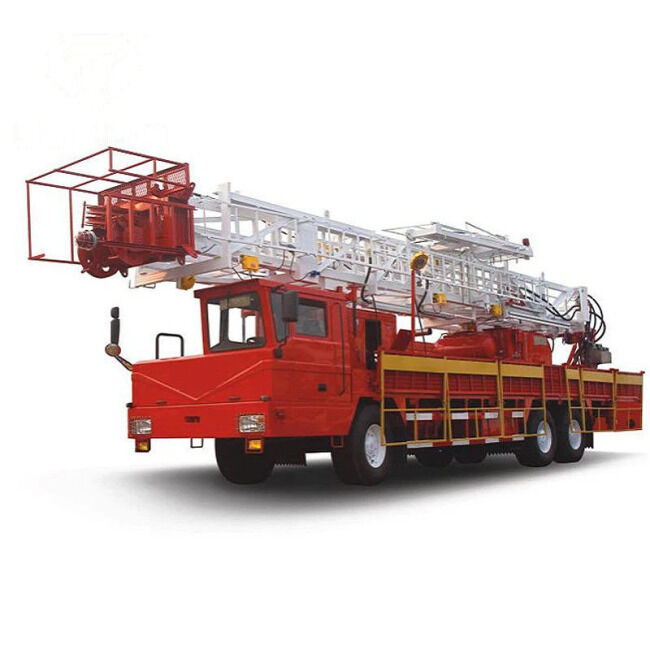

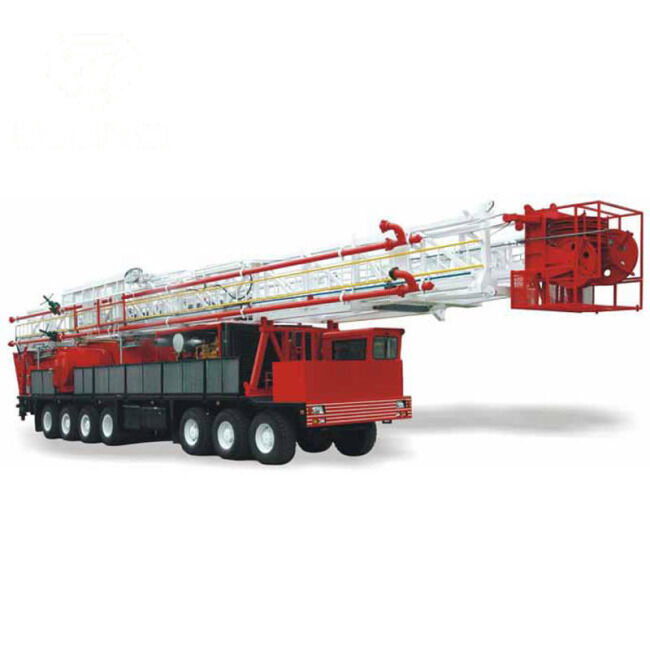

XJ550 Oil Field Workover Rig Truck Mounted Oil Well Service Rig API Standard

API XJ 550 Truck Mounted Workover Oil Welldrilling Rig for Hot Sale

XJ550 Drilling&Workover Rig has a workover depth up to 5,800m and a service depth up to 7,000m. Equipped with rotary table, swivel and drilling tools, they can perform as a mobile drilling rig up to 2,000m depth. The main rig can be customized with well control, solid control and other systematic setup to become your complete solution to workover and drilling operations.

Basic performance:

• 1. Maximum hook load: 5500kN (approximately 550 tons)
• 2. Applicable well depth: 1500-4500 meters
• 3. Height: 28 meters (hydraulic lifting type)
• 4. Power configuration: CAT C18 diesel engine (596kW) Core advantages:
• 1. Modular design: Adopting a split transportation structure, the well site assembly can be completed within 24 hours
• 2. Intelligent control system: equipped with real-time load monitoring and anti-collision warning system
• 3. Environmental adaptation: meets GB 20891-2014 non road machinery emission standards. Typical application scenarios:
• 1. Pump inspection and seal replacement operations for conventional oil and water wells
• 2. Sand flushing and washing of shallow horizontal wells
• 3. Subsidy construction of expansion pipes for casing damage wells Security features:
• 1. Dual redundant hydraulic disc brake system
• 2. The wind resistance level reaches level 12
• 3. Compliant with API 4F/7K/8C standard certification.
