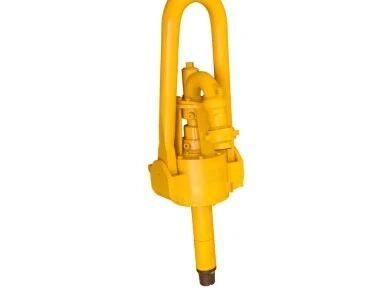

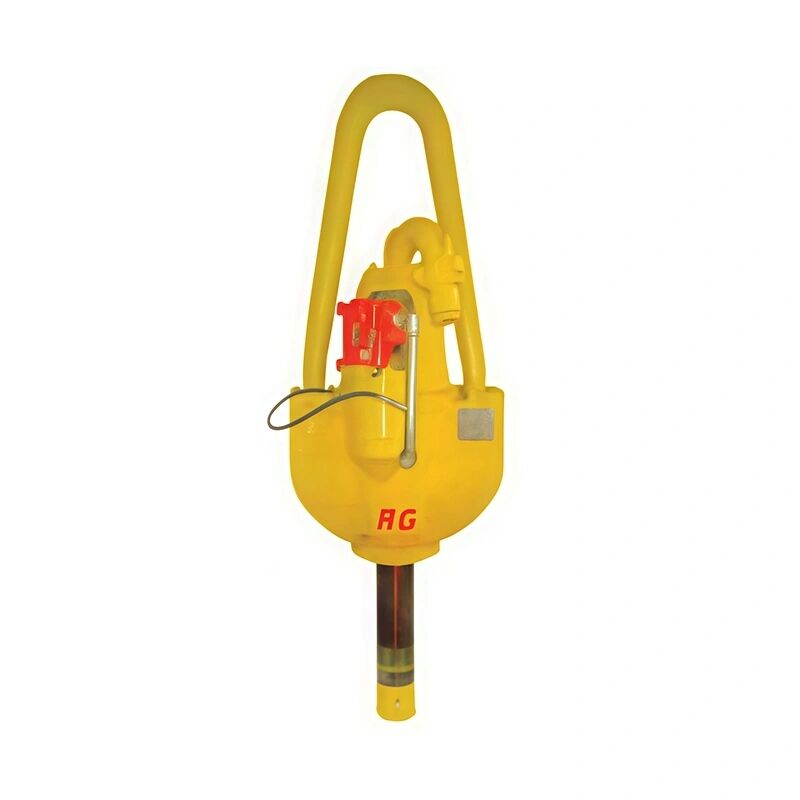

Name: High Pressure Rotary Swivel SL225 Oilfield Tubing Swivel 2250KN
Brand: Xi'an Rig Oilfield Equipment Co., Ltd.
SKU: SL225
Price: Negotiable USD
Availability: InStock

Home > products > Drilling Swivel >

High Pressure Rotary Swivel SL225 Oilfield Tubing Swivel 2250KN

High Pressure Rotary Swivel

SL225 Oilfield Tubing Swivel

Oilfield Tubing Swivel 2250KN

Place of Origin:

China

Brand Name:

XI'AN RIG

Certification:

API 8C

Model Number:

SL225

Chat Now

Request A Quote

Product Details

Type:

Rotary Swivel

Model:

SL225

Standard:

API 8C

Rated Load:

2250 KN

Function:

Tubing Swivel

Application:

Oilfield

Highlight:

High Pressure Rotary Swivel

SL225 Oilfield Tubing Swivel

Oilfield Tubing Swivel 2250KN

Payment & Shipping Terms

Minimum Order Quantity

1 set

Delivery Time

20-40days

Payment Terms

L/C, T/T

Supply Ability

5 set /month

SL315 API 8c Wellhead Rolling Rotary Hose Hook Swivel for Oil Drilling Rig

Chat Now

DSL135 Power Swivel High Torque Drilling Rig Swivel High Pressure

Chat Now

1350KN Drilling Swivel DSL135 Hydraulic Power Swivel Torque Limit

Chat Now

SL110 Oilfield Tubing Swivel API 8C Oil Rig Swivel Cassette Structure

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

API 8C SL225 SL Rotary Swivel

SL Rotary Table Series

Product summary:

We have been dedicated to the development and manufacturing of various drill pipe, casing, and tubing power tongs, as well as other oil drilling and production wellhead tools and equipment. Our product range now includes over 50 series and 100 specifications, covering: ZQ Series Drill Pipe Power Tongs, TQ Series Casing Power Tongs, XSL Series Spinning Swivels, among others.

Model		SL110	SL135	SL170	SL225	SL315	SL450	SL450A
Maximum Static Load	kN	1100	1350	1700	2250	3150	4500	4500
Maximum Static Load	US ton	120	150	200	250	350	500	500
Rated Dynamic Load	kN	600	1000	1300	1600	2100	3200	3200
Rated Dynamic Load	US ton	65	110	140	175	230	350	350
Maximum Speed	Rpm	300	300	300	300	300	300	92(旋扣速度speed)
Maximum Working Pressure	MPa	35/52	35/52	35/52	35/52	35/52	35/52	35/52
Maximum Working Pressure	psi	5000/7500	5000/7500	5000/7500	5000/7500	5000/7500	5000/7500	5000/7500
Connection Thread with Rotary Hose		3LP	4LP	4LP	4LP	4LP	4LP	4LP
Bottom Connection of Central Pipe		41/2REG-LH	65/8REG-LH	65/8REG-LH	65/8REG-LH	65/8REG-LH	65/8REG-LH	65/8REG-LH
Dimensions	mm	1610×630×636	1890×660×780	2060×820×822	2296×1010×957	2418×1056×1041	2570×1096×1012	3015×1096×1000
Dimensions	In	63.5×24.8×25	74.6×26×30.7	81.1×32.3×32.4	90.4×39.8×37.7	95.2×41.6×41	101.2×43.1×39.8	119×43×39.5
Weight	Kg	400	1500	1700	2600	3000	3400	3060
Weight	Lb	880	3307	3748	5732	6614	7496	6755
Compatible Spinning Swivel Model			XSL135	XSL170	XSL225	XSL315	XSL450	/
Dimensions	mm		2326×660×780	2480×820×822	2743×1010×957	2873×1056×1041	3025×1096×1012	/
Dimensions	in		91.6×26×30.7	97.6×32.3×32.4	108×39.8×3737	113×41.6×41	119×43×39.8	/
