Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
Power Swivel

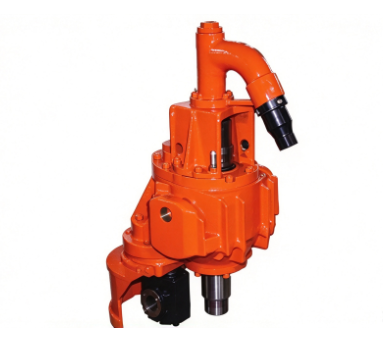

API Standard Power Swivel for Drilling Rig for Oil Well Drilling
As a power unit, power swivel is specially designed and manufactured for workover rig. It can connected with a stand at a time, save make-up and brake-out time 20%.In case of blocked under well or jammed during drilling, it can swiftly lift drilling tool, circulating and rotating to improve safety of well drilling and workover treatment.
Hydraulic driven,3-grade speed reduced are adopted to the power swivel, main axle runs smoothly. It is integrated into mechanical, hydraulic and electric ctrl with big torque output and simple structure ,and easily to be operated.
Technical parameter:
1 Weight: 660kg
2 Maximum torque: 3770N.m
3 Static load: 80t
4 Dynamic load: 40t
5 Maximum circulating pressure: 2200psi
6 Torque control rod radius: 1000
7 Gooseneck nipple: NPT 2〞
8 External thread of center pipe: 3 1/2〞non-upset tubing thread
