Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
ATD324

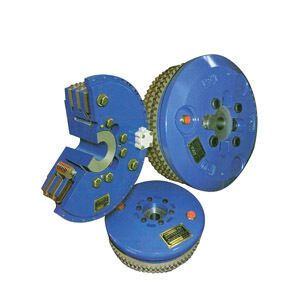

ATD324 Drilling rig disc Push-type clutch
Push-type clutch
Pneumatic push-type clutch with ATD industrial gasbag
Pneumatic push-type clutch can be applied to various working conditions for steady output of power, especially the steady and controllable start under great inertia. Besides, it possesses the outstanding characteristics of quick response, little influence by centrifugal force, difficulty for self-joint, no lubrication and no pollution to the environment. The friction area of such clutch is large, and the variable designs of 1, 2, 3 or 4 central gear disk(s) can better meet the demands of various torques.
| ATD series:ATD118,ATD218,ATD318,ATD124,ATD224,ATD324,ATD230,ATD330. |
| WPT series:WPT118,WPT218,WPT318,WPT124,WPT224,WPT324,WPT230,WPT330. |
Parameters
| Model | 18＂ | 24＂ | 30＂ |
| Max. pressure(MPa) | 1.2 | 1.2 | 1.2 |
| Working pressure(MPa) | 0.6-0.9 | 0.6-0.9 | 0.6-0.9 |
| External dia. of central disk (mm) | 457 | 610 | 762 |
| Internal dia. of friction disk (mm) | 320 | 455 | 496.8 |
| Qty of friction disk | 1/2/3 | 1/2/3 |
3 |
