Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
XJ150

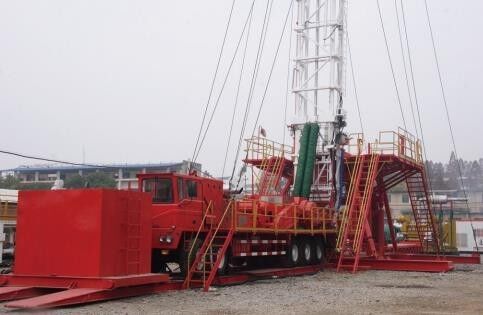

High Performance Oilfield XJ150 Oil Well Truck Mounted Workover Rig
Features
The diesel transfer case, winch are mounted on a self‑propelled chassis. A two‑section telescopic is lifted by hydraulic cylinders. guy lines are fixed by ground anchors. Equipped with a base or workover platform, it enables fast transportation and relocation of the workover rig.
Guy‑line‑free / Self‑guyed Workover Rig: The workover rig is installed on a self‑propelled chassis. It adopts a two‑section telescopic lifted by hydraulic cylinders. guy lines are anchored to the main unit or extended parts of the independent base, without ground anchors. It greatly shortens assembly and disassembly time and improves working efficiency.
Offshore Workover Rig: This guy‑line‑free workover rig is fixed on the offshore workover platform. It meets offshore wind‑load requirements. The mast is hydraulically lifted and capable of transverse and longitudinal movement, featuring a two‑section self‑elevating mast. Mud pump and mud cleaning system can be equipped as required.
| Parameter | XJ150 | XJ250 | XJ350 | XJ450 | XJ550 | XJ650 | XJ750 | XJ1000 |
|---|---|---|---|---|---|---|---|---|
| Equivalent Rig Model | — | — | — | ZJ10CZ | ZJ15CZ | ZJ20CZ | ZJ30CZ | ZJ40CZ |
| Max. Hook Load (kN) | 585 | 675 | 900 | 1125 | 1350 | 1470 | 1800 | 2250 |
| Rated Hook Load (kN) | 300 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 1800 |
| Drilling Depth (m) | — | — | — | 1400 | 1500 | 2000 | 3000 | 4000 |
| Well-Servicing Depth (m) | 1600 | 3200 | 4000 | 5500 | 7000 | 8500 | — | — |
| Major Workover Depth (m) | — | 2000 | 3200 | 4500 | 5800 | 7000 | 8000 | 9000 |
| Drawworks Power (HP) | 150 | 250 | 350 | 450 | 550 | 650 | 750 | 1000 |
| Number of Lines | 6 | 6 | 6 | 8 | 8 | 8 | 10 | 10 |
| Height (m) | 16.8 | 18.21 | 31.7 | 34 | 34 | 35 | 33 | 39 |
| Drive / Chassis Configuration | 5×6 | 6×6 | 8×8 / 10×8 | 10×8 | 10×8 | 12×8 | 14×8 | 14×10 |
| Wireline Diameter | Φ22 mm (7/8 in) | Φ22 mm (7/8 in) | Φ26 mm (1 in) | Φ26 mm (1 in) | Φ26 mm (1 in) | Φ28 mm (1⅛ in) | Φ28 mm (1⅛ in) | Φ32 mm (1¼ in) |
