Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
Pulsation Dampener

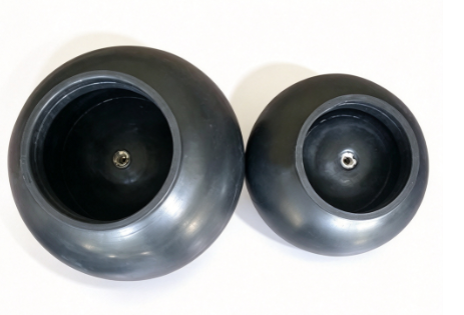

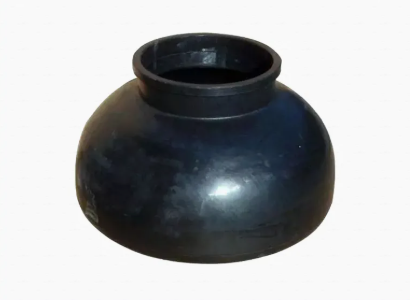

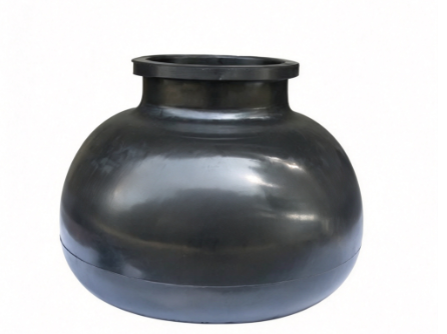

API 7K Mud Pump Rubber Pulsation Dampener Air Bladder for Oilfield
Function:
Reduce the drilling pump pressure fluctuations of instantaneous displacement change;
Make the pump pressure smoothly, protect equipment from damage caused by severe vibration.
Filled with nitrogen in the air or inert gas, in the absence of them,air can replace.But oxygen or combustible gasis forbidden.
Inflation pressure is 20% ~ 30% of the maximum working pressure. The advanced filling pressure is 2.0-2.5 MPa.
Usage:
Mainly applicable to 25 to 35 Mpa drilling, to meet the needs of high pressure jet drilling.
Specification:
|
Size
|
OD of the bottom(mm)
|
OD of the above mouth (mm)
|
ID of the above mouth(mm)
|
Height
|
Mouth edge
|
Chassis number
|
|
f-1300/1600(kb-75)
|
530
|
279
|
240
|
378
|
16
|
1
|
|
3NB-1000/1300(3NB)
|
590
|
314
|
280
|
286
|
23
|
1
|
|
f-500/800/1000(kb-45)
|
445
|
235
|
196
|
332
|
16
|
1
|
|
SL-1300A
|
465
|
270
|
240
|
250
|
21
|
1
|
|
600 pump
|
530
|
300
|
260
|
350
|
30
|
1
|
|
KB-25
|
368
|
203
|
162
|
297
|
15
|
|
|
350 pump
|
350
|
216
|
190
|
250
|
20
|
|
