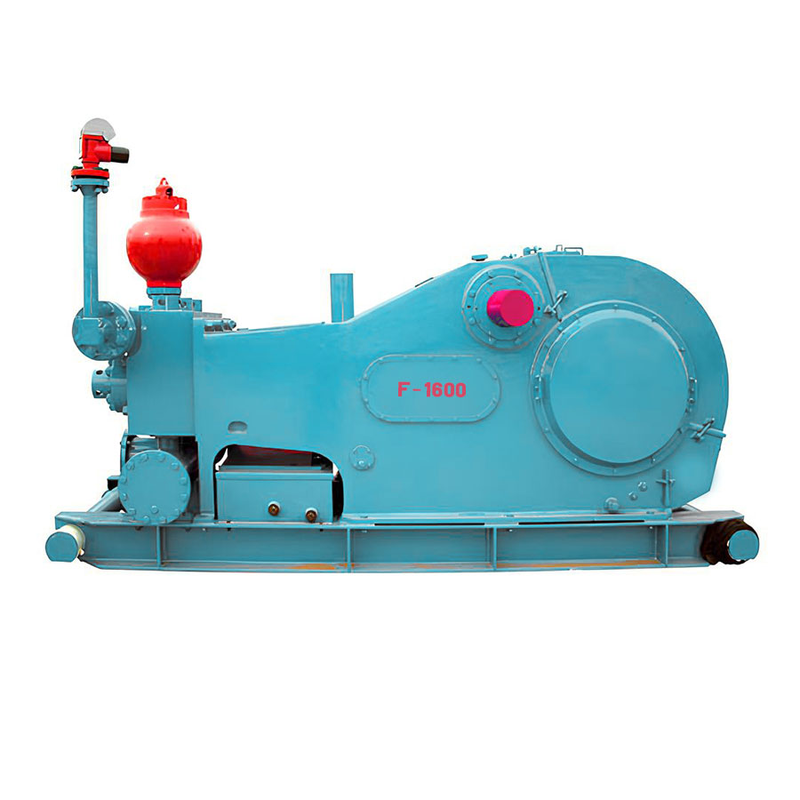

1600 HP Drilling Rig Mud Pump API-7K F-1600 Mud Pump 5000 PSI

The F-1600 mud pump is designed for high-pressure and large-displacement drilling operations, both onshore and offshore. With a rated power of 1193 kW (1600 HP) and a maximum pressure of 34.5 MPa (5000 psi), it meets API Spec 7K standards, ensuring superior performance and reliability.

The F-1600 Mud Pump is engineered to meet the rigorous demands of high-pressure and large-displacement drilling operations, suitable for both onshore and offshore environments. Its robust and compact design ensures reliable performance. The pump features a longer stroke length of 305 mm (12 in), which enhances water supply performance at lower speeds and significantly extends the service life of fluid end components. The combination of forced and splash lubrication ensures optimal lubrication effectiveness.

Manufactured in accordance with API Spec 7K standards, the fluid end parts of the F-1600 mud pump are interchangeable with API-compliant components. The advanced suction pulsation damper ensures optimal suction performance, while the durable fluid end components significantly boost overall performance. The independent structure facilitates easier inspection, maintenance, and repairs, making the F-1600 an ideal choice for efficient and reliable drilling operations.
