Place of Origin:
China
Brand Name:
RIG
Certification:
API 7K
Model Number:
F-1300

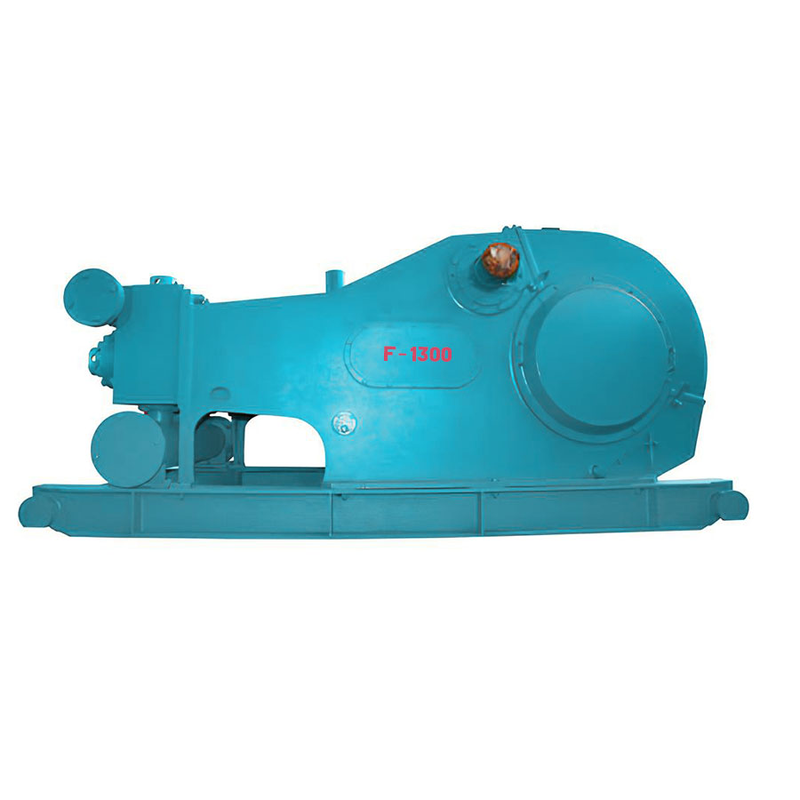

F-1300 Mud Pump
The F-1300 mud pump is a compact and robust solution designed for high-pressure and large-displacement drilling operations, both onshore and offshore. With a rated power of 969 kW (1300 HP) and a maximum pressure of 34.5 MPa (5000 psi), it complies with API Spec 7K standards, ensuring high performance and reliability.
The F-1300 Mud Pump is engineered to meet the demanding requirements of high-pressure and large-displacement drilling operations, both onshore and offshore. Its robust and compact design ensures excellent and reliable performance. The pump’s longer stroke length of 305 mm (12 in) enhances water supply performance at lower speeds, significantly extending the service life of fluid end components.
Manufactured in accordance with API Spec 7K standards, the fluid end parts are interchangeable with API-compliant components. The advanced suction pulsation damper ensures optimal suction performance, while the durable fluid end components significantly boost overall performance. The independent structure facilitates easier inspection, maintenance, and repairs, making the F-1300 an ideal choice for efficient and reliable drilling operations.
| Parameter | Value |
|---|---|
| Rated Power | 969 kW / 1300 HP |
| Type | Triplex Single-acting |
| Strokes per Minute | 120 |
| Stroke Length | 305 mm / 12 in |
| Max Liner Diameter | 180 mm / 7 in |
| Gear Type | Herringbone Gear |
| Valve Pot | API-7 # |
| Gear Ratio | 4.206:1 |
| Suction Inlet Diameter | 305 mm / 12 in |
| Discharge Outlet Diameter | 5 1/8 in Flange 5000 psi |
| Pinion Shaft Diameter | 215.9 mm / 8 1/2 in |
| Max Pressure | 34.5 MPa / 5000 psi |
| Dimensions (L x W x H) | 4617 x 3260 x 2600 mm |
| 182 x 128 x 102 in | |
| Weight | 24572 kg / 54170 lbs |
