Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 7K
Model Number:
FIG1502

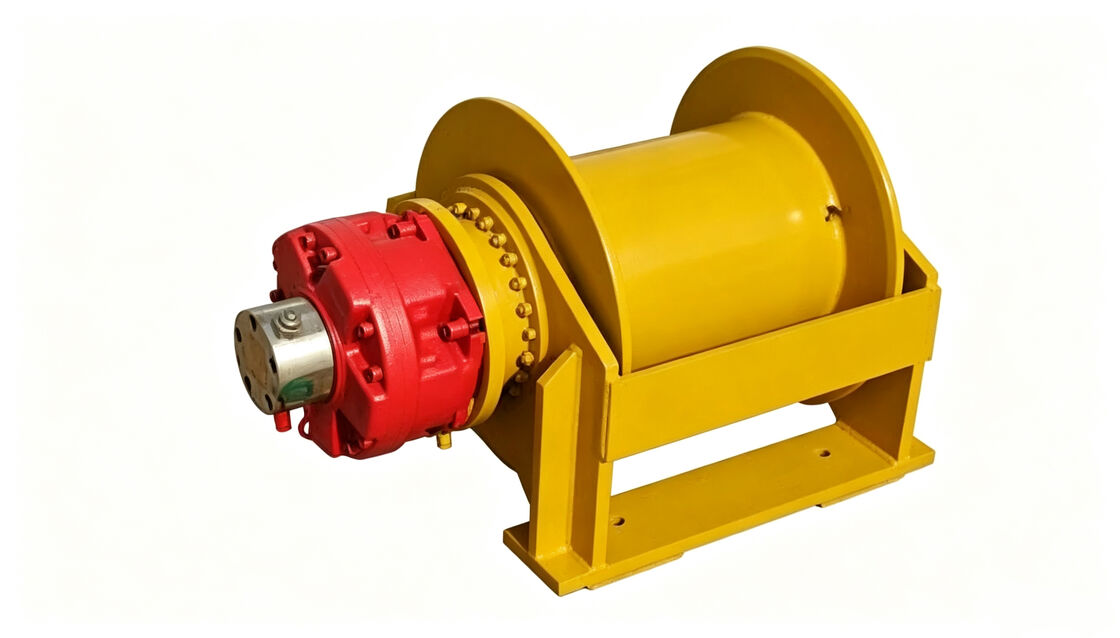

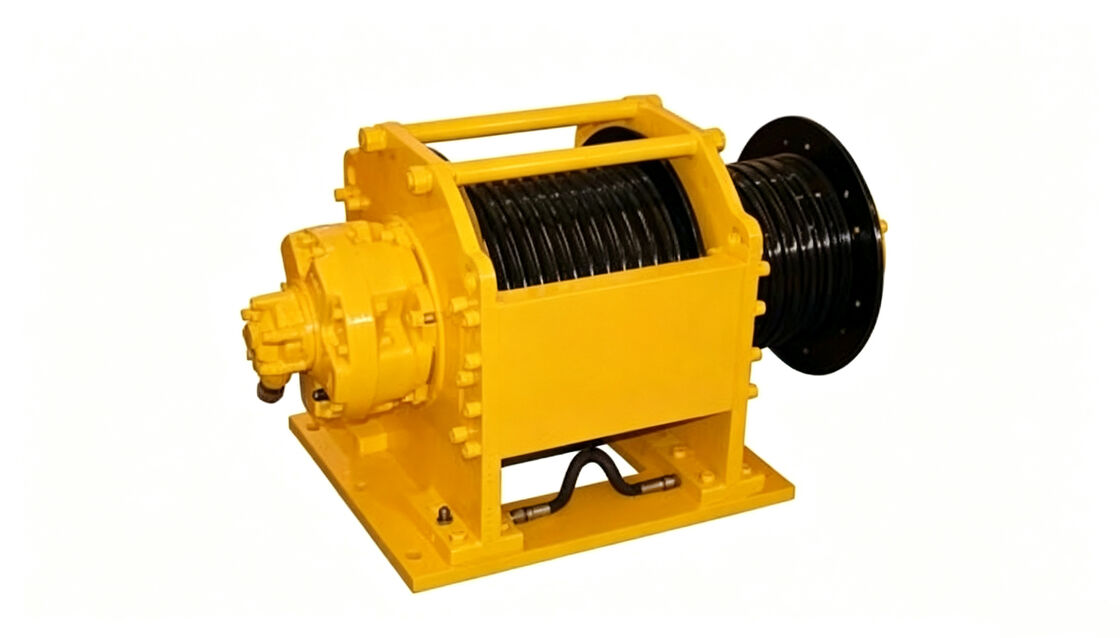

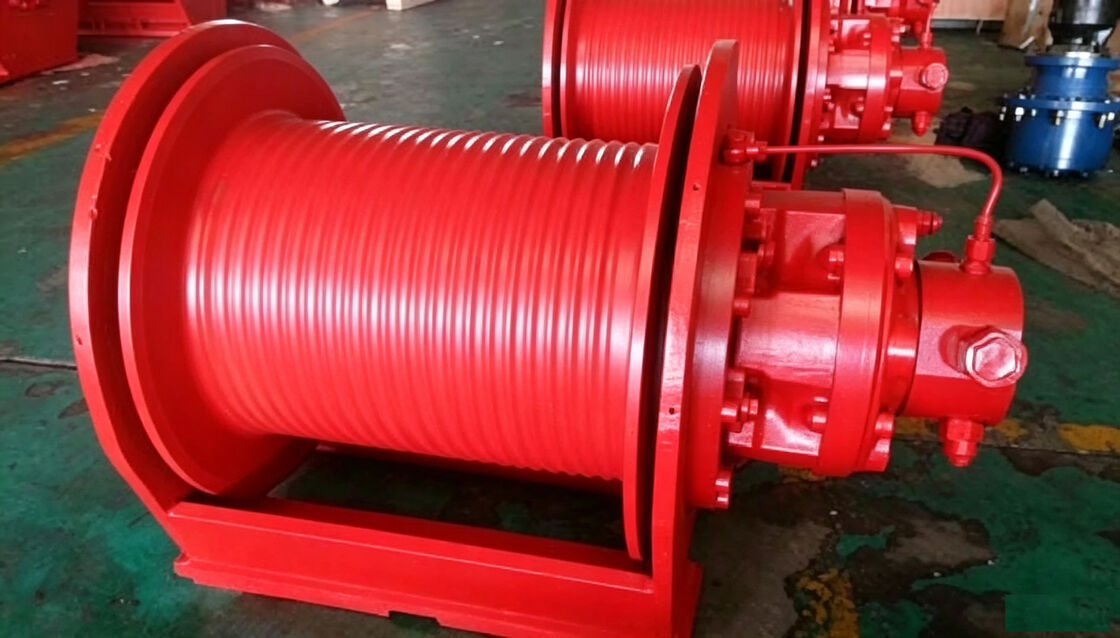

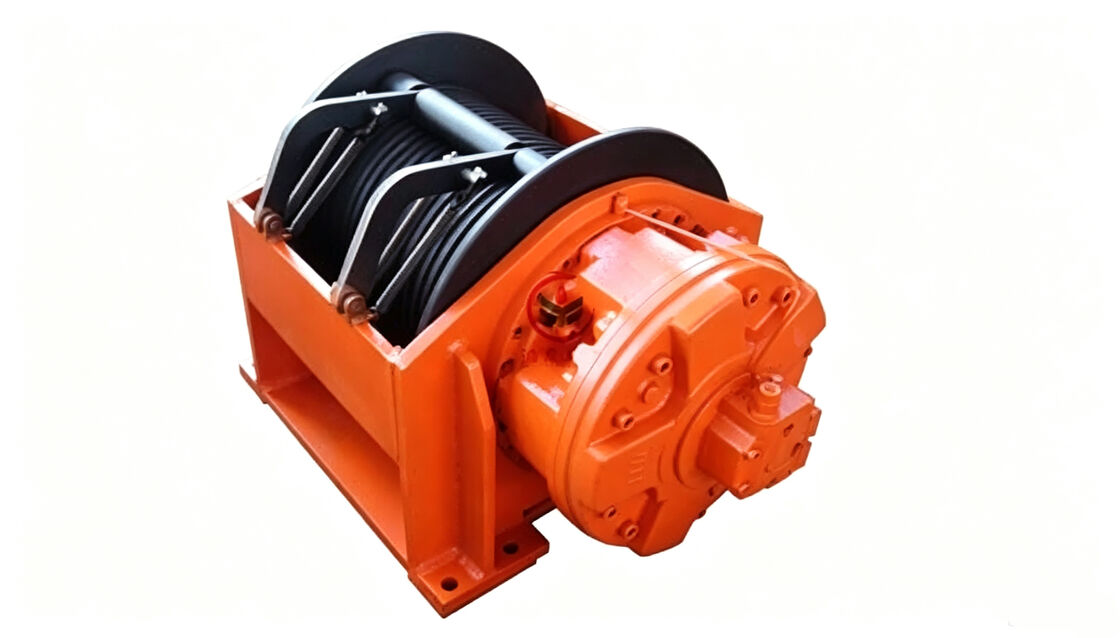

PI7K Hydraulic Hydraulic Planetary And Worm Gear Winches for Drilling
Types:
Basic Info
| Model No. | YJ3/110, YJ5/100, YJ16/60, YJ16/100 |
|---|---|
| Brand Name | YOULONG ENERGY |
| Support customization | Oem |
| place of origin | China |
| Power source | Electric, Hydraulic, Hand, Pneumatic |
| application | Auto, Boat, Atv/Utv, Cranes |
Product description
Characteristics and features
▲Produce and design according API 7K standard.
▲Exploration proof than air winch.
▲Small dimension, lower noise.
▲High strength steel body and parts, longer service time.
Specifications and parameters
| Model | YJ3/110 | YJ5/100 | YJ16/60 | YJ16/100 | |
| Flow Rating | L/min | 120 | |||
| gpm | 31.7 | ||||
| Pressure rating | MPa | 16.6 | |||
| psi | 2400 | ||||
| Max. Pull | kN | 30 | 50 | 160 | 160 |
| US ton | 3.3 | 5.5 | 17.6 | ||
| Max. Line Speed | m/min | 23 | 11 | 5.8 | |
| ft/min | 73 | 36 | 19 | ||
| Wire rope Dia. | mm | 12.7 | 20.5 | 28 | |
| in | 1/2 | 3/4 | 13/32 | ||
| Rope Storage | M | 110 | 100 | 60 | 110 |
| ft | 360 | 328 | 197 |
328 |
|
