Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 7K
Model Number:
JZG42
Basic Info
| Model No. | JZG42, JZG41, JZG35, etc. |
|---|---|
| Brand Name | YOULONG ENERGY |

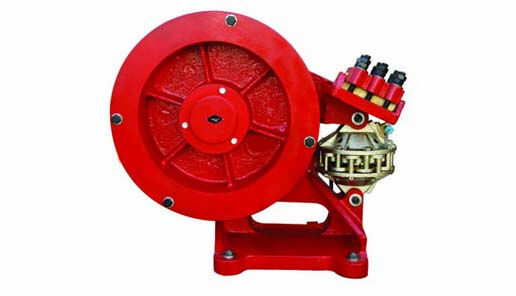

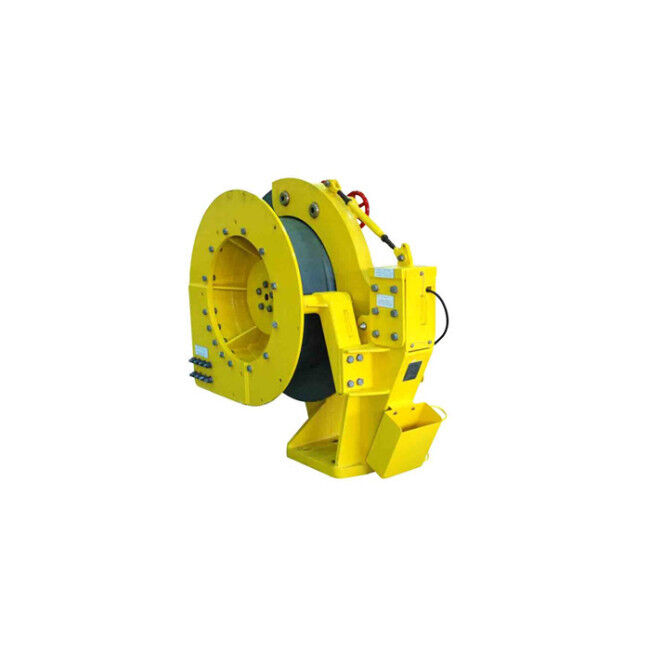

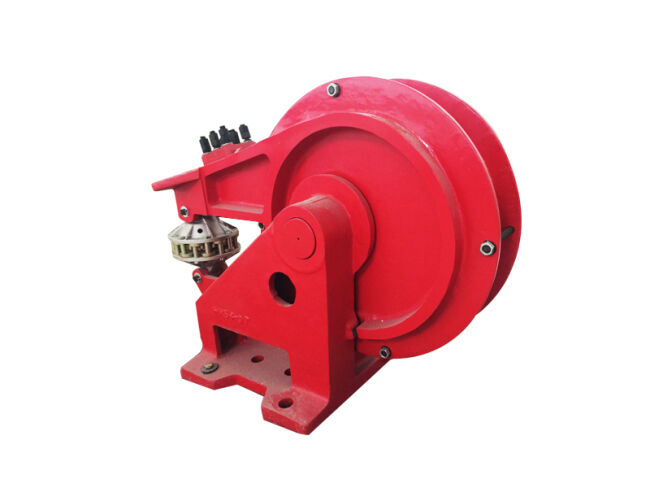

Deadline Anchor of Oilfield Products
Deadline anchors provide accurate weight measurements and secure deadlines；
Full line of all-weather, quality-built deadline anchors pull capacities from 30,000 to 160,000 pounds；
Constructed with top-quality steel and proof-tested to 150% of rated capacity；
Deadline Anchors are highly accurate, super-strong anchors of exceptional reliability.
Deadline Anchors are designed to be used with hydraulic Load Cells to provide sensitive weight signals for transmission to Weight Indicators. These anchors also provide a reliable way to secure deadlines, while allowing for fast and easy line-slipping.
The deadline anchor can be equipped with JZZ type weight indicator and JZJ type recorder, or it can be purchased separately.
Characteristics and features
▲Can be used in drilling rig, workover drilling rig etc.
▲Material is High strength steel, extended the service time.
▲1.5 times pressure and tensile test before leaving the factory, high precision, stability, etc.
▲Two forms, horizontal and vertical.
▲The design and manufacture of deadline anchor conform to API 8C specification and SY/T 5320 and other relevant standards.
▲The deadline anchor can be equipped with JZZ type weight indicator and JZJ type recorder, or it can be purchased separately.
Specifications and parameters
| Model | Assembly type | Max deadline pulling (kN) | Line on gauge | Load (kN) | Output pressure (MPa) | Wireline dia (mm) | Weight indicator type |
| JZG42 | vertical | 420 | 12 | 5040 | 6 | 38 | JZ500 |
| 10 | 4200 | ||||||
| JZG41 | horizontal | 410 | 12 | 4920 | 6.83 | 38 | JZ500A |
| 10 | 4100 | ||||||
| JZG35 | vertical | 350 | 12 | 4200 | 6 | *32,35 | JZ400 |
| 10 | 3500 | ||||||
| JZG34A | horizontal | 340 | 12 | 4080 | 6 | 35 | JZ400B |
| 10 | 3400 | ||||||
| JZG24 | vertical | 240 | *12 | 2880 | 6 | *29,32 | JZ250 |
| 10 | 2400 | ||||||
| 8 | 1920 | ||||||
| JZG20 | vertical | 200 | 10 | 2000 | 6 | *26,29 | JZ200 |
| 8 | 1600 | ||||||
| JZG18A | horizontal | 180 | *10 | 1800 | 6 | 26,*29 | JZ150A |
| 8 | 1440 | ||||||
| 6 | 1080 | ||||||
| JZG18 | vertical | 180 | *10 | 1800 | 6 | 26,*29 | JZ150 |
| 8 | 1440 | ||||||
| 6 | 1080 | ||||||
| JZG15A | horizontal | 150 | 8 | 1200 | 6 | 26 | JZ100A |
| 6 | 900 | ||||||
| JZG15 | vertical | 150 | 8 | 1200 | 6 | 26 | JZ100 |
| 6 | 900 | ||||||
| JZG10 | Draw type | 100 | 8 | 800 | 4.2 | -- | JZ60 |
| 6 | 600 | ||||||
| JZG13 | Draw type | 136.6 | 6 | 820 | 6 | -- | JZ82 |
| JZG12 | Draw type | 125 | 6 | 750 | 5.2 | -- |
JZ75 |
