Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 7K
Model Number:
YZB-120Ⅱ
API 7K Hydraulic Power Units Featuring Wide Adjustment Range and Easy Operation for Drilling Performance
Basic Info
| Model No. | YZB-120Ⅱ, YZBF-120Ⅱ, YZBF-120LD, YZBF-120LD/2-4 |
|---|---|
| Brand Name | YOULONG ENERGY |
| status | New |
| Out-of-warranty service | Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts |
| Where to provide local services (in which countries are there overseas service outlets) | Egypt, Canada, United States, Germany, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, India, Russia, Thailand, Malaysia, Australia, Uzbekistan, Tajikistan, Kazakhstan, Uae, Ukraine |
| Types of | Hydraulic Power Units |
| place of origin | China |
| Service system | Online Support, Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
Product description

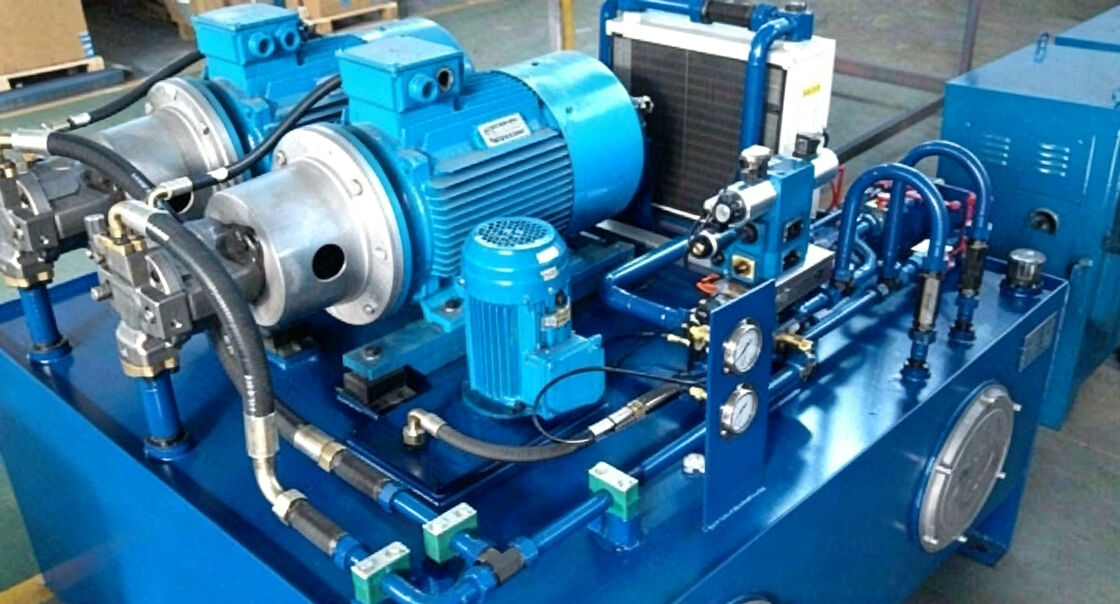

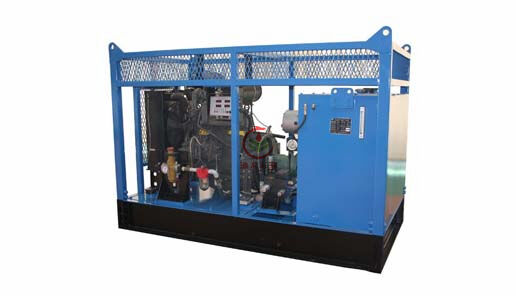

HPU is the power source for generating the flow of hydraulic fluid for the desired application. They being said, the combinations are endless and at advanced fluid power, we design and build custom power units to the specification of the customer. Mainly consist of motor, pump, coupling, adjustable pressure control, pressure gauge, reservoir, etc.
▲Wide adjustment range, easy operation, high generality.
▲Air or water cooled.
▲Electric driver and diesel drive.
Specifications and parameters
| Model | YZB-120Ⅱ | YZBF-120Ⅱ | YZBF-120LD | YZBF-120LD/2-4 | YZBF-120LD/2-5Ⅲ | YZBS-120Ⅱ | YZBS-120LD-2 | |
| Rated flow | L/min | 120 | 120 | 80/120 | 114 | 120 | 120 | 120 |
| gpm | 31.7 | 31.7 | 21/31.7 | 30 | 31.7 | 31.7 | 31.7 | |
| Rated pressure | MPa | 16.6 | 16 | 16.6 | 20 | 16.6 | 16.6 | 16 |
| psi | 2400 | 2320 | 2400 | 2900 | 2400 | 2400 | 2320 | |
| Max.pressure | MPa | 21.5 | 20 | 21.5/14 | 21.5 | 20 | 20 | 20 |
| psi | 3120 | 2900 | 3120/2030 | 3120 | 2900 | 2900 | 2900 | |
| Available capacity | L | 587 | 587 | 600 | 900 | 900 | 900 | 900 |
| gal | 155 | 155 | 158.5 | 238 | 238 | 238 | 238 | |
| Drive power | kw | 37 | 37 | 37 | 45×2 | 45×2 | 37 | 37 |
| hp | 49.6 | 49.6 | 49.6 | 60.3×2 | 60.3×2 | 49.6 | 49.6 | |
| Heating power | kw | 3×2 | ||||||
| hp | 4×2 | |||||||
| Radiation area | m2 | 32 | 40 | 40 | 40 | 6 | 10 | |
| ft2 | 344 | 430.6 | 430.6 | 430.6 | 64.6(water cooling) |
107.6(water cooling) |
||
