Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C
Model Number:
YM-8
YM-8 High Quality API 8C Hydraulic Rotary Cathead for Oilfield Well Drilling
Description:
The YM hydraulic cathead is suitable to make up and break out by companying with Suspension Tong.
Operation is stable and pull may be adjusted whenever necessary.
It has its series with four specifications of 5t, 8t, 10t, 16t by pull to select.
It is designed and manufactured according to Specification for Drilling and Production Hoisting Equipment.

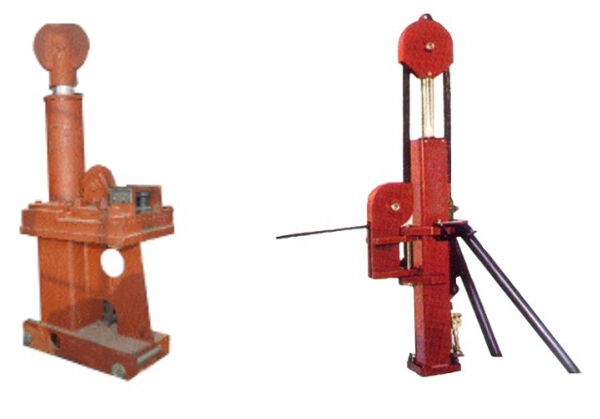

The hydraulic cathead is used together with the tongs to implement the make-up and break-out of the drill pipe and casing. It mostly consists of a control box and hydraulic cathead. It is divided into the push cylinder type and rotary cathead type in terms of its structural features. With the hydraulic drive, the output torque can be adjusted conveniently according to the tubular diameter, with high working efficiency and safety.
Technical Parameter:
| Type | Push cylinder type | Rotary cathead type | |||
| Model | YM-8 | YM-10 | YM-816 | YXM-13 | YXM-16 |
| Rated working pressure (Mpa) | 14 | 16 | 16 | 16 | 16 |
| Stroke (mm) | 1600 | 1650 | 1620 | / | / |
| Rated pull force(KN) | 80 | 100 | 160 | 130 | 160 |
| Overall dimension(mm) | 1250×670×340 | 1250×670×340 | 2450×270×731 | 1210×730×750 | 1210×730×750 |
| Weightkg | 480 | 750 | 900 | 1000 | 1000 |
