Product Description

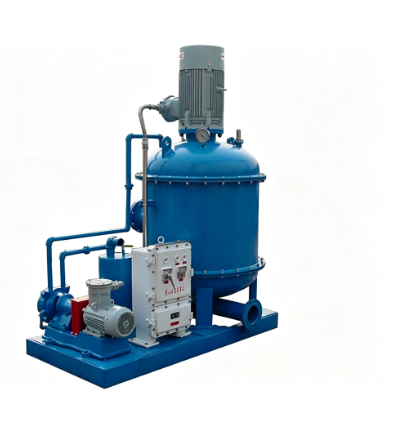

ZKCQ/6-22 Vacuum Degasser API Standard Vacuum Degasser for Drilling Mud Solid Control System

Vacuum Degasser is adapted to get rid of various cut-in gases in drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn't need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.

Parameter Description of Vacuum Degasser (ZKCQ/6-22 ZKCQ/6-1)
Use:	Drilling machinery and equipment	Type:	Mud circulation and treatment equipment
Model:	ZKCQ/6-22 ZKCQ/6-1	Yield:	300

"Vacuum Deaerator (ZKCQ/6-22 ZKCQ/6-1)" Additional instructions
Third, technical parameters
Technical parameters	ZKCQ/6-22	ZKCQ/4-15
Treatment capacity m3/h	300~360	200~260
Vacuum degree mmHg	280~400	280~40
Vacuum pump power Kw	4	4
Main motor power Kw	22	15
Deaerator speed r/min	980	980
Mass kg	1700	1500
