Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
ZKCQ/4-15

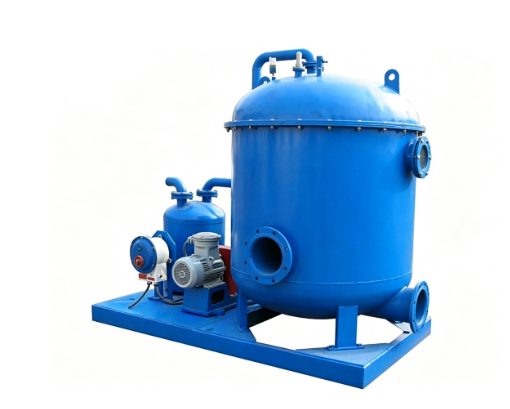

High Efficiency Vacuum Degasser Mud Gas Removal Equipment for Oilfield Drilling
Separation of gases immersed in the drilling fluid in the circulating purification system.
1. Vacuum separation, crushing separation and microporous separation and other separation technologies are combined, with strong degassing ability;
2. The liquid level valve automatically adjusts the vacuum pressure;
3, the use of linkage control equipment, simple operation;
4. The equipment has a hierarchical delay start protection function.
| Parameter Description of Vacuum Degasser (ZKCQ/6-22 ZKCQ/6-1) | |||
| Use: | Drilling machinery and equipment | Type: | Mud circulation and treatment equipment |
| Model: | ZKCQ/6-22 ZKCQ/6-1 | Yield: | 300 |
| "Vacuum Deaerator (ZKCQ/6-22 ZKCQ/6-1)" Additional instructions | |||
| Third, technical parameters | |||
| Technical parameters | ZKCQ/6-22 | ZKCQ/4-15 | |
| Treatment capacity m3/h | 300~360 | 200~260 | |
| Vacuum degree mmHg | 280~400 | 280~40 | |
| Vacuum pump power Kw | 4 | 4 | |
| Main motor power Kw | 22 | 15 | |
| Deaerator speed r/min | 980 | 980 | |
| Mass kg | 1700 | 1500 | |
