Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
Shale Shaker

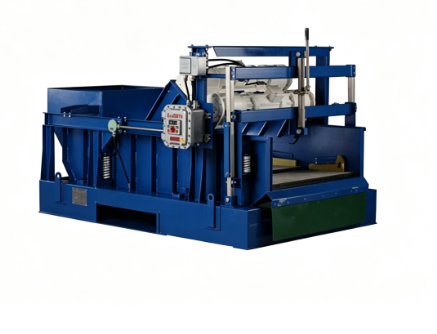

High-Performance Laminated Mud Shale Shaker for Oilfield Applications
1. uses:
Suitable for solid phase separation of drilling fluid circulation system.
1. Adopt linear motion trajectory;
2, screening mesh 80-300 mesh superior performance;
3. Large processing capacity of single sieve 60L/S;
4. The rapid unilateral support structure of the screen makes the replacement time of the screen shorter (2 minutes), which greatly reduces the labor intensity of the operator;
5. The closed anti-splash device makes the working environment cleaner and more comfortable;
6, a variety of screen box inclination adjustment mode: electric, hydraulic, mechanical for choice;
7, * * stainless steel screen box and buffer tank for selection;
8, fluorocarbon paint, heavy anti-corrosion, long service life.
| Parameter Description of "Linear Drilling Fluid Vibrating Screen (RSD2005-Z)" | ||||||||
| Use: | Drilling machinery and equipment | Type: | Oil drilling tools and accessories | |||||
| Model: | RSD2007-Z | Yield: | 300 | |||||
| 3. technical parameters | ||||||||
| 1. Model of excitation motor: YZU30-4/T | ||||||||
| 2. Amplitude: A≥ 6mm | ||||||||
| 3. Inclination angle of screen box:-1 °-+7 ° (dynamic adjustable) (manual hydraulic, electric machinery optional) | ||||||||
| 4. Screen size: 1133 × 780 × 3(4) sheets | ||||||||
| 5. Treatment capacity: when the viscosity is 60, the specific gravity is 1.2, and the mesh number of the screen is 200, the treatment capacity of the single screen is 100 cubic meters/hour; | ||||||||
| 6. Screen box protection: mud splash prevention device | ||||||||
| 7. Frequency conversion mode: variable frequency (optional) | ||||||||
| 8. Screen installation method: fast tightening device for large inclined surface of screen (optional) | ||||||||
| 9. Overall dimensions: (length × width × height) 4000 × 3000 × 1400 mm (duplex) | ||||||||
| 10. Whole machine quality: 3200 Kg | ||||||||
