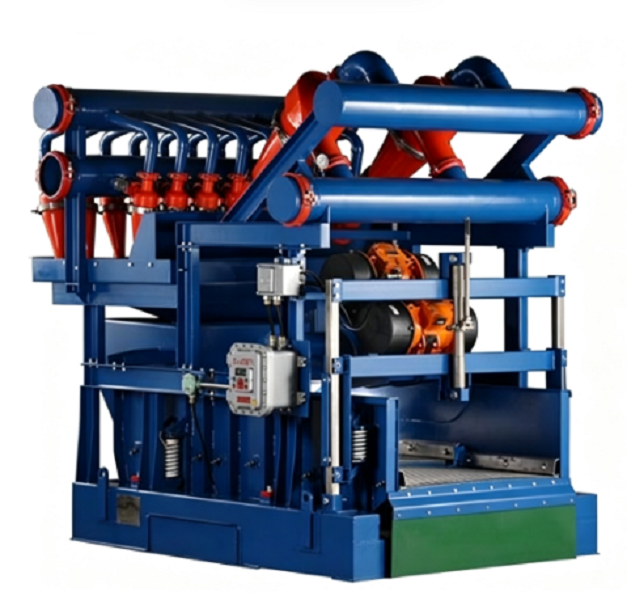

Heavy-Duty API Mud Cleaner (Desander+Desilter Integrated) For Oilfield

Specification of Desander‑Desilter Integrated Cleaner

Application: Drilling machinery and equipment Type: Mud circulation and treatment equipment

Detailed Introduction of Desander‑Desilter Integrated Cleaner

1. Application

It is a critical solid‑phase separation equipment in the drilling fluid circulation system.

2. Features

1. Integrates shale shaker, desander and desilter into one unit.
2. Adopts balanced‑elliptical motion trajectory for improved screening capacity and better sand‑discharging performance.
3. Screening mesh size ranges from 60‑300 mesh; single‑deck shaker achieves a processing capacity of 75 L/S.
4. Reliable enclosed anti‑splashing device delivers a cleaner and more comfortable working environment.
5. Multiple adjustment options for shaker deck angle: electric, hydraulic and mechanical types for customer selection.
6. Stainless steel shaker deck and buffer tank are available as optional configurations.
7. Fluorocarbon paint provides multi‑layer anti‑corrosion protection for extended service life.

Main Technical Parameters

1. Processing capacity: 75 L/S
2. Shaker deck amplitude: A≥2.5 mm (minor axis), A≥6 mm (major axis)
3. Shaker deck angle: Dynamically adjustable within ‑1° ~ +7°
4. Screen dimension: 1053 mm×697 mm ×3 pcs + 750 mm×800 mm ×2 pcs
5. Screening mesh size: 80‑300 mesh
6. Overall weight: 4000 kg (double‑unit configuration)
