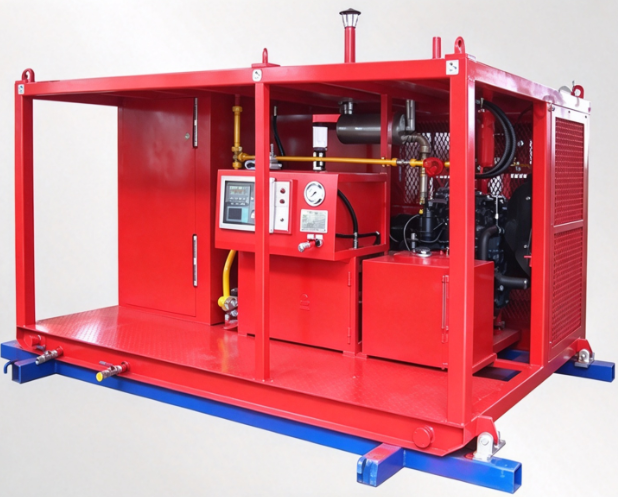

High Pressure Power Diesel Engine Electric Hydraulic Station for drilling rig

High Pressure Power Diesel Engine Electric Hydraulic Station for drilling rig

The series hydraulic station is equipped with main pump group, self-circulating filtration and oil feeding filtration pump group, air or water device, anti-explosion electric ctrl box, oil supply & return valve group(some including disc-brake ctrl valve group) etc, which is characterized with automatic on/off at low oil level, automatic heating/cooling for oil temperature, alarming for oil temperature and level and oil filter strainer polluted etc.

We can supply following products according to requirements from the Customer:

● Hydraulic station for desert drilling rig, marine drilling rig borne with serious corrosion.
● Hydraulic station for low temperature resistant drilling rig in polar region.
● Hydraulic station powered by diesel engine
Technical parameter:

1 Diesel engine power　　　　　　　　　　　　　　　　61.6Kw/2200rpm

2 Rated pressure　　　　　　　　　　　　　　　　　　16MPa

3 Max.flow　　　　　　　　　　　　　　　　　　　　　130L/min

4 Effective volume of hydraulic oil tank　　　　　　　　　1100L

5 Volume of diesel engine　　　　　　　　　　　　　　100L

6 Overall dimension　　　　　　　　　　　　　　　　　(L×W×H)＝3230mm×2270mm×2409mm

7 Weight　　　　　　　　　　　　　　　　　　　　　　net weight:1950kg oil filled:3100kg
