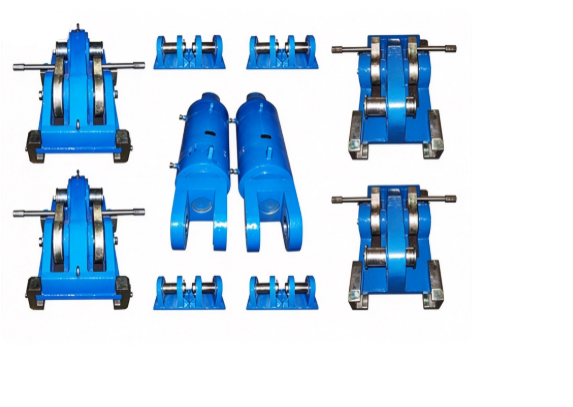

Drilling Rig Moving Device for Quick Rig Movement & Relocation on Oilfield Well Sites

Drilling Rig Moving Device for Quick Rig Movement & Relocation on Oilfield Well Sites

The Drilling Rig Moving Device, also known as hydraulic rig skidding system, is specialized auxiliary equipment for onshore drilling rig relocation and positioning. Driven by hydraulic power, it enables the whole rig to slide and move on the well pad without repeated disassembly substructure, greatly cutting rig relocation time and reducing labor cost.

Constructed with heavy-duty alloy steel skid beams and high-thrust hydraulic cylinders, this moving device can bear huge rig load and adapt to uneven ground conditions of oilfield sites. Synchronous hydraulic control ensures stable, balanced movement and avoids tilting risks during shifting.

It features reliable sealing performance for hydraulic components, good adaptability to dusty and temperature-varying wellsite environments. Simple operation and easy maintenance lower downtime. Multiple load capacity options are available to match different models of land drilling rigs.

This rig moving system is widely used for cluster well drilling projects, delivering efficient and safe rig repositioning for global onshore oil and gas exploration.

Technical parameter:

Maximum moving weight of the drill　　　　　　　　　　　　690t(Including tool)

Maximum allowable wind force when the rig moves　　　　　　8m/s

Max moving speed　　　　　　　　　　　　　　　　　　　　0.3m/min

Rig movement pitch　　　　　　　　　　　　　　　　　　　　0.5m

Synchro error of moving system　　　　　　　　　　　　　　≤5%

Hydraulic control box

Rated pressure　　　　　　　　　　　　　　　　　　　　　　21MPa

Rated flow　　　　　　　　　　　　　　　　　　　　　　　　120L/min

Hydraulic cylinder used for moving

Model　　　　　　　　　　　　　　　　　　　　　　　　　　double-acting

Rated pressure　　　　　　　　　　　　　　　　　　　　　　16MPa

Cylinder diameter　　　　　　　　　　　　　　　　　　　　　340mm

Rod diameter　　　　　　　　　　　　　　　　　　　　　　　160mm

Route　　　　　　　　　　　　　　　　　　　　　　　　　　565mm

Thrust　　　　　　　　　　　　　　　　　　　　　　　　　 ≥1350kN

Tension　　　　　　　　　　　　　　　　　　　　　　　　　 ≥1052kN
