Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API
Model Number:
KCB 2CY

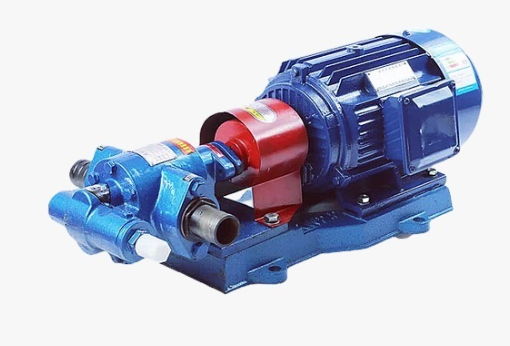

KCB 2CY High Pressure Gear Oil Pump for Oilfield Drilling Rig Lubrication System
Product Description
KCB/2CY type gear oil pump is suitable for conveying a variety of oils with viscosity below 300c.s.t, such as crude oil, diesel oil, lubricating oil, animal and plant oils. With copper gear can transport low flash point liquid, such as gasoline, benzene and so on. The medium temperature does not exceed 70 ° C, and the use temperature of the high-temperature oil pump does not exceed 300 ° C. The pump body has a safety valve, which plays a safety role when overloaded. Shaft seal with skeleton oil seal, mechanical seal, packing seal three types, please specify when ordering. 2CY series gear lubrication pump is mainly used for conveying lubricating oil in the lubrication system of various mechanical equipment, suitable for conveying lubricating oil with viscosity below 10oE (75c.s.t) and temperature below 300℃. Stainless steel gear pump can transport edible oil, drinks and so on. Shaft seal with skeleton oil seal, mechanical seal, packing seal three types, please specify when ordering.
| Model | Flow(m³/h) | Pressure(MPa) | Vacuum Degree(m H2O) | Inlet & Outlet Diameter | Matching Motor Model | Power(kw) |
|---|---|---|---|---|---|---|
| KCB18.3 (2CY1.1/14.5) | 1.1 | 1.45 | 5 | G3/4" | Y902-4 | 1.5 |
| KCB33.3 (2CY2/14.5) | 2 | 1.45 | 5 | G3/4" | Y100L1-4 | 2.2 |
| KCB55 (2CY3/3.3) | 3.3 | 0.33 | 5 | G1" | Y90L-4 | 1.5 |
| KCB83.3 (2CY5/3.3) | 5 | 0.33 | 5 | G1 1/2" | Y100L2-4 | 2.2 |
| KCB133 (2CY8/3.3) | 8 | 0.33 | 5 | G2" | Y132S-6 | 3 |
| 2CY8/6 | 8 | 0.6 | 5 | G2" | Y132M1-6 | 4 |
| 2CY8/10 | 8 | 1 | 5 | G2" | 132M2-6 | 5.5 |
| 2CY12/1.3 | 12 | 0.13 | 5 | G2" | 112M-4 | 4 |
| KCB200 (2CY12/3.3) | 12 | 0.33 | 5 | G2" | 132S-4 | 5.5 |
| 2CY12/6 | 12 | 0.6 | 5 | G2" | 132S-4 | 5.5 |
| 2CY12/10 | 12 | 1 | 5 | G2" | 132M-4 | 7.5 |
| KCB300 (2CY18/3.6) | 18 | 0.36 | 5 | 70 | 132M2-6 | 5.5 |
| 2CY18/6 | 18 | 0.6 | 5 | 70 | 160M-6 | 7.5 |
| KCB483 (2CY29/3.6) | 29 | 0.36 | 5 | 70 | 132M-4 | 7.5 |
| 2CY29/6 | 29 | 0.6 | 5 | 70 | 160M-4 | 11 |
| KCB6339 (2CY38/2.8) | 38 | 0.28 | 5 | 100 | 160L-6 | 11 |
| 2CY38/6 | 38 | 0.6 | 5 | 100 | 200L2-6 | 22 |
| KCB960 (2CY60/3) | 60 | 0.3 | 5 | 100 | 180L-4 | 22 |
| 2CY100/3 | 100 | 0.3 | 5 | 150 | 250M-8 | 30 |
| 2CY100/6 | 100 | 0.6 | 5 | 150 | 315S-8 | 55 |
| 2CY120/3 | 120 | 0.3 | 5 | 150 | 250M-8 | 30 |
| 2CY120/6 | 120 | 0.6 | 5 | 150 | 315S-8 | 55 |
| 2CY150/3 | 150 | 0.3 | 5 | 150 | 280S-8 | 37 |
| 2CY150/6 | 150 | 0.6 | 5 | 150 | 315M1-8 | 75 |
| 2CY1.08/10 | 1.08 | 1 | 5 | G3/4" | 802-4 | 0.75 |
| 2CY1.08/25 | 1.08 | 2.5 | 5 | G3/4" | 90L-4 | 1.5 |
| 2CY2.1/10 | 2.1 | 1 | 5 | G1" | 90L-4 | 1.5 |
| 2CY2.1/25 | 2.1 | 2.5 | 5 | G1" | 100L2-4 | 3 |
| 2CY3/10 | 3 | 1 | 5 | G1" | 100L1-4 | 2.2 |
| 2CY3/25 | 3 | 2.5 | 5 | G1" | 112M-4 | 4 |
| 2CY4.2/10 | 4.2 | 1 | 5 | G1 1/4" | 100L2-4 | 3 |
| 2CY4.2/25 | 4.2 | 2.5 | 5 | G1 1/4" | 132S-4 | 5.5 |
| 2CY7.5/10 | 7.5 | 1 | 5 | G1 1/2" | 112M-4 | 4 |
| 2CY7.5/25 | 7.5 | 2.5 | 5 | G1 1/2" | 132M-4 | 7.5 |
| 2CY12/6 | 12 | 0.6 | 5 | G2" | 132S-4 | 5.5 |
| 2CY12/10 | 12 | 14 | 5 | G2" | 132M-4 | 7.5 |
| 2CY18/3.6 | 18 | 0.36 | 5 | 75 | 132M2-6 | 5.5 |
| 2CY29/3.6 | 29 | 0.36 | 5 | 75 | 132M-4 | 7.5 |
Products Features:
1. 2CY, KCB gear type oil pump structure is simple and compact. Easy to use and maintain.
2. 2CY, KCB gear type oil pump has good self-priming, it does not need to fill the liquid before starting the pump each time.
3. The lubrication of 2CY and KCB gear type oil pump is automatically achieved by conveying liquid. Therefore, it is not necessary to add lubricating liquid in daily work.
4. The use of elastic couplings to transmit power can compensate for small deviations caused by installation. When the pump is subjected to the inevitable hydraulic impact, it can play a relatively large buffer role.
Mainly Application:
1, KCB, 2CY series gear type oil pump is suitable for conveying a variety of oils, such as heavy oil, diesel oil, lubricating oil, with copper gear can transport the inner point of low liquid, such as gas oil, benzene, etc., the unit also produces stainless steel gear pump can transport beverages and corrosive liquids. 2, KCB, 2CY series gear type oil pump is not suitable for containing hard particles or fibers, the applicable viscosity is 5* 10-5 ~1.5*103m2/s. The temperature is not high to 70℃, if you need to transport high temperature liquid, please use high temperature gear pump, which can transport liquid below 300℃.
