Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 7K
Model Number:
BH800
| 冲次 Stroke/minute | 额定功率 Rated power | 缸套直径 Cylinder Liner's Diameter,mm | ||||||||
| 170 | 160 | 150 | 140 | 130 | 120 | 110 | ||||
| 额定压力Rated Pressure Mpa (psi) | ||||||||||
| 12.4(1771) | 14.4(2057) | 16.9(2414) | 20.1(2871) | 24.3(3471) | 30(4286) | 35(5000) | ||||
| kW | HP | 排量DisplacementL/S(GPM) | ||||||||
| 175 | 648 | 880 | 46.90 | 40.43 | 34.48 | 29.05 | 23.98 | 19.43 | 15.49 | |
| 160 | 592 | 805 | 42.88 | 36.96 | 31.52 | 26.56 | 21.92 | 17.76 | 14.16 | |
| 150 | 595 | 755 | 40.20 | 34.65 | 29.55 | 24.90 | 20.55 | 16.65 | 13.28 | |
| 140 | 518 | 705 | 37.52 | 32.34 | 27.58 | 23.24 | 19.18 | 15.54 | 12.39 | |
| 130 | 481 | 654 | 38.84 | 30.03 | 25.61 | 21.58 | 17.81 | 14.43 | 11.44 | |
| 120 | 444 | 604 | 32.16 | 27.72 | 23.64 | 19.92 | 16.44 | 13.32 | 10.56 | |
| 110 | 407 | 554 | 29.48 | 25.42 | 21.67 | 18.26 | 15.07 | 12.21 | 9.68 | |

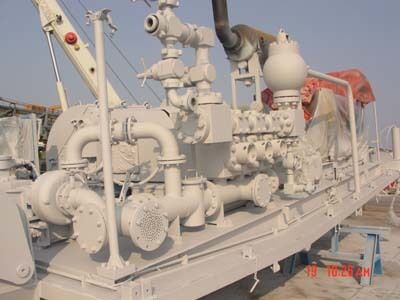

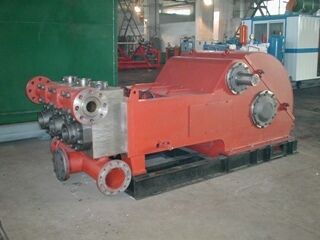

It is mainly used to convey drilling mud, and can also transport media with physical properties similar to mud.
This series of horizontal piston (plunger) pumps is a new-generation product developed by our company. We learn from the advanced structure of similar foreign products and combine our rich practical experience in years of piston pump R&D and manufacturing, to meet the demands of onshore oilfield drilling, as well as grouting operations in geological, mining, groundwater and geothermal drilling.
The product features compact structural design and high load-bearing capacity. Various configurations are available to satisfy different application requirements in diverse working sites.
