Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C

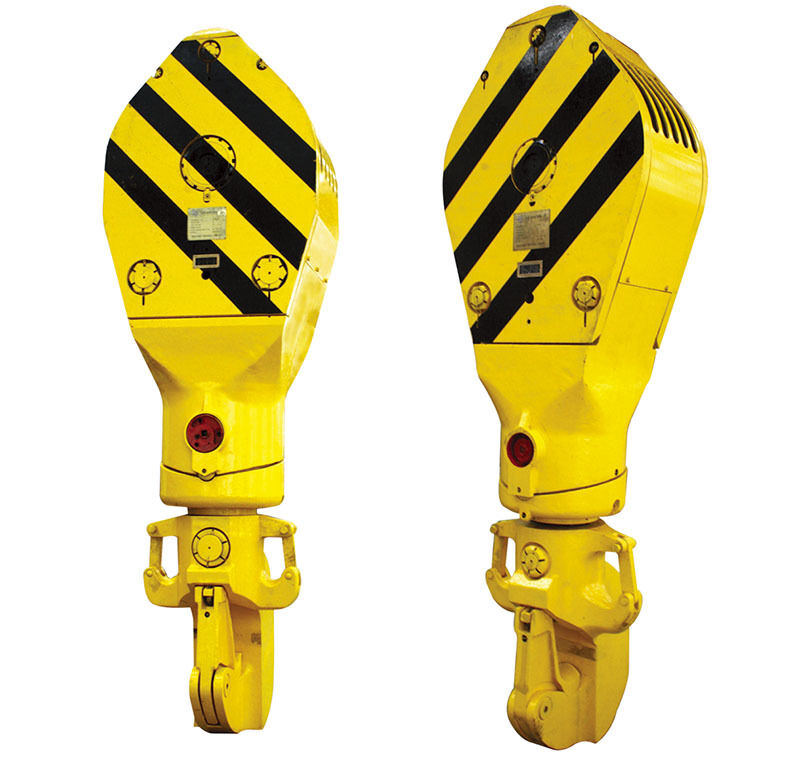

API 8C Oil Travelling Hook and Block for Oilfield Drilling
Features:
In accordance with API Spec.8C and marked with API MONOGRAM;
The side plate assembly is made of thick steel plate;
The grooves are quenched to extend the service life;
Equipped with the rope covers;
The bearings and the sheaves are interchangeable with those of matching Crown Block;
| Type | Max. Hook Load | Number of Sheaves | Sheaves Outer Diameter | Wireline Diameter | Main Hook Opening | Spring Travel | Overall Dimension (L×W×H) | Weight (approx.) |
|---|---|---|---|---|---|---|---|---|
| YG135 | 1350 kN / 150 USton | 4 | 760 mm / 30 in | 26 mm / 1 in | 150 mm / 5.9 in | 170 mm / 6.7 in | 2946×838×647 mm / 116×33×26 in | 3126 kg / 6892 lb |
| YG135 | 1350 kN / 150 USton | 4 | 915 mm / 36 in | 29 mm / 1⅛ in | 150 mm / 5.9 in | 170 mm / 6.7 in | 3091×987×647 mm / 122×39×26 in | 3426 kg / 7548 lb |
| YG160 | 1600 kN / 180 USton | 4 | 760 mm / 30 in | 29 mm / 1⅛ in | 220 mm / 8.7 in | 150 mm / 5.9 in | 3059×830×765 mm / 121×33×30 in | 3282 kg / 7236 lb |
| YG170 | 1700 kN / 190 USton | 5 | 915 mm / 36 in | 29 mm / 1⅛ in | 200 mm / 7 in | 170 mm / 6.7 in | 3402×960×725 mm / 134×38×29 in | 4594 kg / 10120 lb |
| YG225 | 2250 kN / 250 USton | 5 | 915 mm / 36 in | 29 mm / 1⅛ in | 190 mm / 7.5 in | 180 mm / 7 in | 3610×960×775 mm / 142×38×31 in | 6200 kg / 13657 lb |
| YG225 | 2250 kN / 250 USton | 5 | 1120 mm / 44 in | 32 mm / 1¼ in | 190 mm / 7.5 in | 180 mm / 7 in | 3714×1190×775 mm / 146×47×31 in | 6600 kg / 14538 lb |
| YG350 | 3170 kN / 350 USton | 5 | 1270 mm / 50 in | 32 mm / 1¼ in | 220 mm / 8.7 in | 200 mm / 7.9 in | 4190×1350×885 mm / 165×53×34.9 in | 10860 kg / 23942 lb |
| YG450 | 4500 kN / 500 USton | 6 | 1524 mm / 60 in | 35 mm / 1⅜ in | 220 mm / 8.7 in | 200 mm / 7 in | 4887×1600×810 mm / 193×63×32 in | 12530 kg / 27646 lb |
