Place of Origin:
China
Brand Name:
Xi'an Rig
Certification:
API
Model Number:

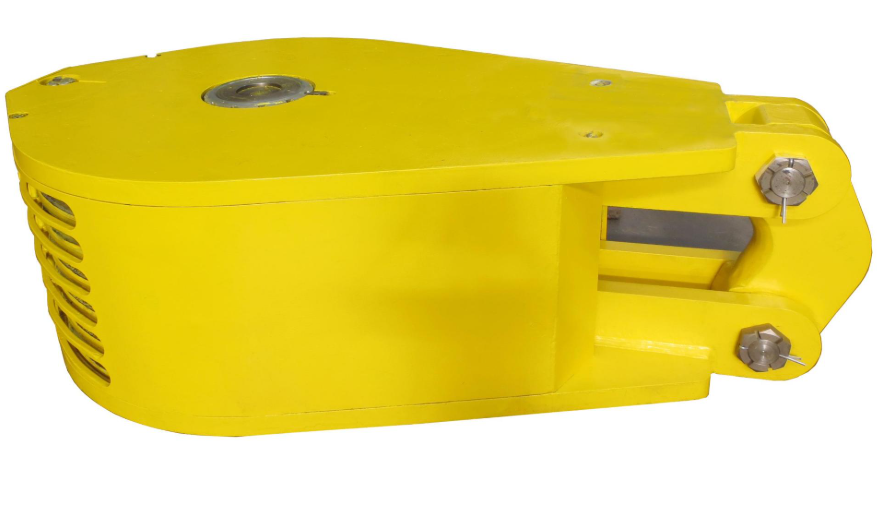

YC135
1. Comply with API 8A specification and have the right to use API logo
2. In line with the industry standard "oil rig main lifting equipment" SY/T5527 requirements
3. Pulley groove by quenching treatment, wear resistance, long life
4. The pulley is interchangeable with the bearing and the matching crown block
| Model | maximum static load | Pulley outer diameter | Number of pulleys/one | Wire rope diameter | Overall dimension/(L×W×H) | Quality |
| YC90 | 900 kN | 762 mm(30 in) | 4 | 24 mm(15/16 in) | 953 mm × 552 mm × 620 mm | 532 kg |
| YC135 | 1350 kN | 915 mm(36 in) | 4 | 26 mm(1 in) | 1353 mm × 595 mm × 840 mm | 1761 kg |
| YC170 | 1700 kN | 915 mm(36 in) | 5 | 29 mm(1-1/8 in) | 2123 mm × 1045 mm × 840 mm | 2068 kg |
| YC225 | 2250 kN | 1120 mm(44 in) | 5 | 32 mm(1-1/4 in) | 2234 mm × 1129 mm × 630 mm | 3805 kg |
| YC315 | 3150 kN | 1270 mm(50 in) | 6 | 35 mm(1-3/8 in) | 2680 mm × 1350 mm × 974 mm | 6842 kg |
| YC450 | 4500 kN | 1524 mm(60 in) | 6 | 35 mm(1-3/8 in) | 3075 mm × 1600 mm × 800 mm | 8135 kg |
| YC585 | 5850kN | 1524 mm(60 in) | 7 | 42 mm(1-5/8 in) | 3100 mm × 1600 mm × 965 mm | 9 |
