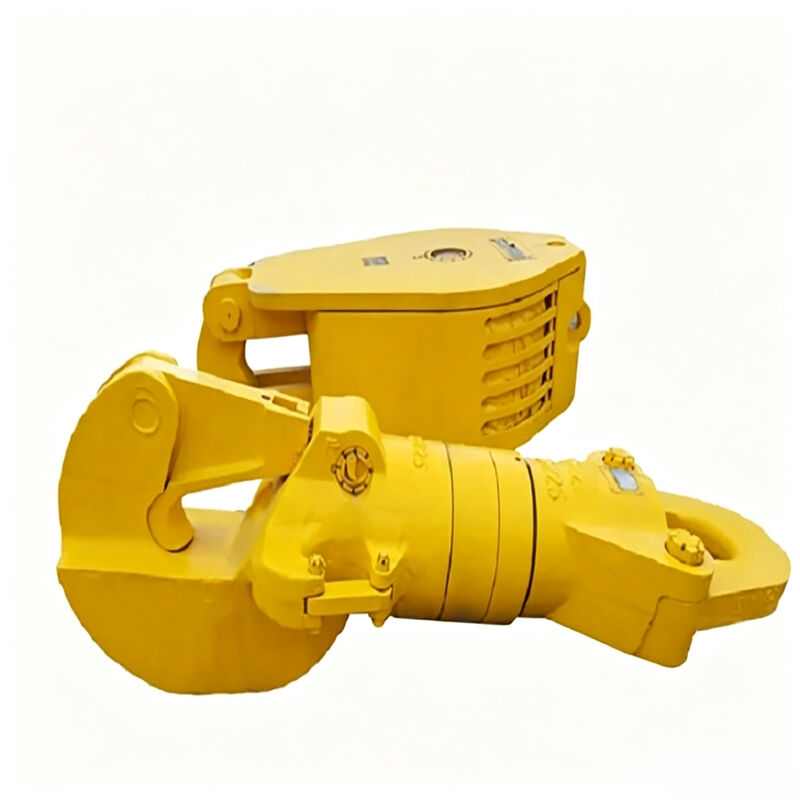

Name: Quenched Hook Block Interchangeable Hook Block Parts API 8C
Brand: Xi'an Rig Oilfield Equipment Co., Ltd.
SKU: YG225
Price: Negotiable USD
Availability: InStock

Home > products > Traveling Block And Hook >

Quenched Hook Block Interchangeable Hook Block Parts API 8C

Quenched Hook Block

Interchangeable Hook Block Parts

Hook Block Parts API 8C

Place of Origin:

China

Brand Name:

Xi'an Rig

Certification:

API

Model Number:

YG225

Chat Now

Request A Quote

Product Details

Max. Hook Load (KN):

2250

Number Of Sheaves:

OD Of Sheaves (mm/in):

1120/44

Dia. Of Wire Line (mm/in):

35/1 3/8

Dimensions (mm):

2294x1190x630

Weight (kg):

3713

Highlight:

Quenched Hook Block

Interchangeable Hook Block Parts

Hook Block Parts API 8C

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Packaging Details

woden carton

Delivery Time

in stock

Payment Terms

L/C, D/A, D/P, T/T, Western Union

YC450 Oilfield Traveling Block Used With API Standard for Drilling Rig

Chat Now

YG160 API 8C Oil Travelling Hook and Block for Oilfield Drilling

Chat Now

Carburetion Traveling Block And Hook High Strength Drilling Hook 3150kN

Chat Now

PSL1 Traveling Block And Hook API 8C Travelling Block In Drilling 2250kN

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

API 8C Travlling Block Spare Parts Hook Blocks for Oilfield

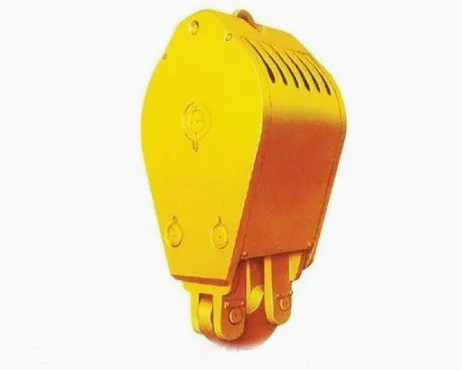

Traveling Block

In accordance with API Spec.8C and marked with API MONOGRAM;
Joining the Traveling Block and Hook together to reduce overall length.
The grooves are quenched to extent the service life.
Equipped with the rope covers.
There is a reliable safety device.

Model Parameters		YG60	YG90	YG110	YG135		YG170	YG225		YG350	YG450
Max. Hook Load	KN(USton)	600	900	1100	1350(150)		1700(190)	2250(250)		3170(350)	4500(500)
Qty. of Sheaves	~	3,4	3,4	3,4	4		5	5		5	6
Diameter of Sheaves	mm(in)	610(24)	610(24)	610(24)	760(30)	915(36)	915(36)	915(36)	1120(44)	1270(50)	1524(60)
Diameter of Wire Line	mm(in)	22(7/8)	22(7/8)	26(1)	26(1)/29(1-1/8)	29(1-1/8)	29(1-1/8)	29(1-1/8)/32(1-1/4)	29(1-1/8)/32(1-1/4)	32(1-1/4)	35(1-3/8)
Major Hook Opening	mm(in)	110(4-3/8)	130(5-1/8)	140(5.5)	150(5.9)		200(7.9)	190(7.5)		220(8.7)	220(8.7)
Spring travel	mm(in)	115(4-1/5)	120(4-3/4)	150(5-7/8)	170(6.7)		170(6.7)	180(7)		200(7.9)	200(7.9)
Overall Dimension	mm	1840x692x456	2005x616x498	2334x640590)	2946X838X647	3091X987X647	3402X960X725	3610X960X775	3714X1190X775	4190X1350X885	4887X1600X810
Weight	KG	1200	1250	1780	3126	3426	4594	6200	6600	10860	12530
