Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C
Model Number:
YC450

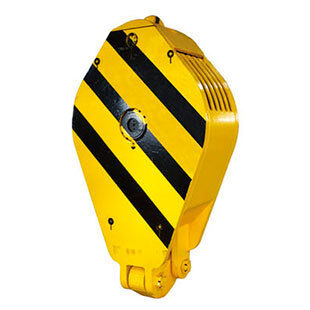

YC450 Oilfield Traveling Block Used With API Standard for Drilling Rig
Travelling Block
1) The sheave groove is quenching treated, anti-abrasion with long service life.
2) Built to API 8A, having the certificate of authority to use the official API monogram.
3) Conforming to the requirements of industry standard SY/T5527.
4) The sheave and bearing are interchangeable for those of mated crown block.
| Type | Max. Hook Load | Number of Sheaves | Sheave Outer Diameter | Wire‑line Diameter | Overall Dimension (L×W×H) | Weight (approx.) |
|---|---|---|---|---|---|---|
| YC170 | 1700 kN / 190 USton | 5 | 915 mm / 36 in | 29 mm / 1⅛ in | 2090×960×630 mm / 82.3×38×25 in | 2800 kg / 6173 lb |
| YC225 | 2250 kN / 250 USton | 5 | 1120 mm / 44 in | 35 mm / 1⅜ in | 2294×1190×630 mm / 90×47×25 in | 3713 kg / 8351 lb |
| YC315 | 3150 kN / 350 USton | 6 | 1270 mm / 50 in | 35 mm / 1⅜ in | 2680×1350×974 mm / 105.5×53.1×38.3 in | 6842 kg / 15084 lb |
| YC450 | 4500 kN / 500 USton | 6 | 1524 mm / 60 in | 38 mm / 1½ in | 3075×1600×800 mm / 105.5×53.1×38.3 in | 8135 kg / 17935 lb |
