Name: Hook DG315 for Well Hoisting Operation For Oilfield Drilling Rig
Brand: Xi'an Rig Oilfield Equipment Co., Ltd.
SKU: DG315
Price: Negotiable USD
Availability: InStock

Home > products > Traveling Block And Hook >

Hook DG315 for Well Hoisting Operation For Oilfield Drilling Rig

dg315 forged drilling hook

3150 kn maximum hook load

spring buffer anti-drop latch

Place of Origin:

China

Brand Name:

XI'AN RIG

Certification:

API 8C

Model Number:

DG315

Chat Now

Request A Quote

Product Details

Max. Hook Load:

3150 KN

Major‑hook Opening:

220 Mm / 8.7 In

Spring Travel:

200 Mm / 7⅞ In

Weight (approx.):

3500 Kg / 7720 Lb

Type:

Drilling Hook

Model:

DG315 DG450

Highlight:

dg315 forged drilling hook

3150 kn maximum hook load

spring buffer anti-drop latch

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Delivery Time

15-30 working days

Payment Terms

L/C, T/T

YC450 Oilfield Traveling Block Used With API Standard for Drilling Rig

Chat Now

YG160 API 8C Oil Travelling Hook and Block for Oilfield Drilling

Chat Now

Carburetion Traveling Block And Hook High Strength Drilling Hook 3150kN

Chat Now

PSL1 Traveling Block And Hook API 8C Travelling Block In Drilling 2250kN

Chat Now

8618291452987

depart01@xianrig.com

Chat Now

Product Description

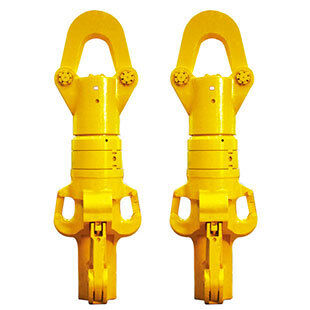

Hook DG315 for Well Hoisting Operation For Oilfield Drilling Rig

Oilfield Drilling Rig Hook DG315 DG450 for Well Hoisting Operation

This oil drilling hook is a key hoisting component for oil & gas drilling rigs. Made of high strength alloy steel by forging. It absorbs impact load through built-in spring buffer system. Multiple DG models are available for different load requirements. Suitable for onshore and offshore drilling platforms, reliable for heavy load well lifting work.

Applications

Used for suspending drill string, casing and other tools during oil and gas well drilling. Widely applied for onshore oil rigs and offshore drilling platforms, supporting hoisting operations in various well depth conditions.

Key Configurations

Integrated forged hook body, built-in buffer spring assembly, safety anti-drop latch, rotatable bail assembly, lubrication grease fitting, main hook opening for elevator connection.

Type	Max. Hook Load	Major‑hook Opening	Spring Travel	Overall Dimension (Length × Width × Height)	Weight (approx.)
DG170	1700 kN / 190 USton	190 mm / 7.5 in	180 mm / 7⅛ in	2498×742×678 mm / 98×29×27 in	2100 kg / 4620 lb
DG225	2250 kN / 250 USton	190 mm / 7.5 in	180 mm / 7⅛ in	2545×780×750 mm / 100×30.7×29.5 in	2180 kg / 4806 lb
DG315	3150 kN / 350 USton	220 mm / 8.7 in	200 mm / 7⅞ in	2953×890×830 mm / 116.3×35×34.6 in	3410 kg / 7520 lb
DG450	4500 kN / 500 USton	220 mm / 8.7 in	200 mm / 7⅞ in	2953×890×880 mm / 116.3×35×34.6 in	3500 kg / 7720 lb
