Place of Origin:
China
Brand Name:
XI'AN RIG
Certification:
API 8C/8A
Model Number:
SL225

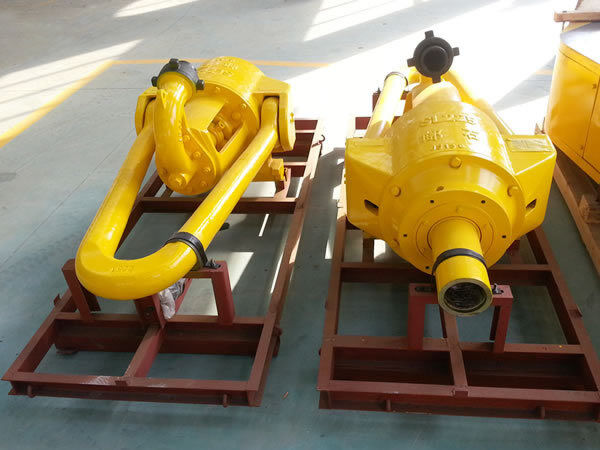

API 8C/8A SL225 Water Swivel for Oilfield

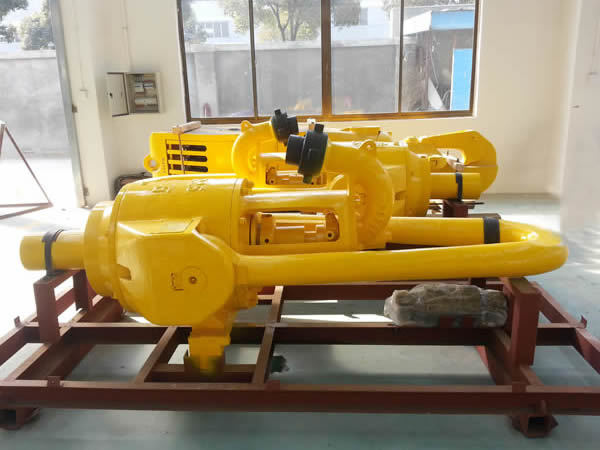

1.XSL-Swivel with spinner is a combination of swivel and Kelly spinner, driven by air motor or hydraulic motor, with keyless connection adopted between spinner and central pipe of swivel .
2.It is designed and manufactured according to API spec8 A"Specification for drilling and production hoisting equipment"
| Model | XSL135 | XSL170 | XSL225 | XSL315 | XSL450 | |
| Max static load | KN | 1350 | 1700 | 2250 | 3150 | 4500 |
| US ton | 150 | 180 | 250 | 350 | 500 | |
| Rated work load | Kn | 1000 | 1300 | 1600 | 2200 | 3200 |
| US ton | 110 | 145 | 175 | 245 | 350 | |
| Max speed | rpm | 300 | 300 | 300 | 300 | 300 |
| Mad working pressure | Mpa | 35 | 35 | 35 | 35 | 35 |
| Psi | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Thread of drilling hose | 4LP | 4LP | 4LP | 4LP | 4LP | |
| Thread below sub | 6-5/8"reg LH | 6-5/8"reg LH | 6-5/8"reg LH | 6-5/8"reg LH | 6-5/8"reg LH | |
| Overall dimensions | cm | 234*68*59 | 293*79*66 | 326*98*78 | 345*110*83 | 345*110*83 |
| in | 92*27*23 | 115*31*26 | 129*39*31 | 136*43*33 | 136*43*33 | |
| Weight | kg | 1718 | 2000 | 2772 | 2972 | 2972 |
| ib | 3997.6 | 4409 | 6111 | 6550 | 6550 | |
